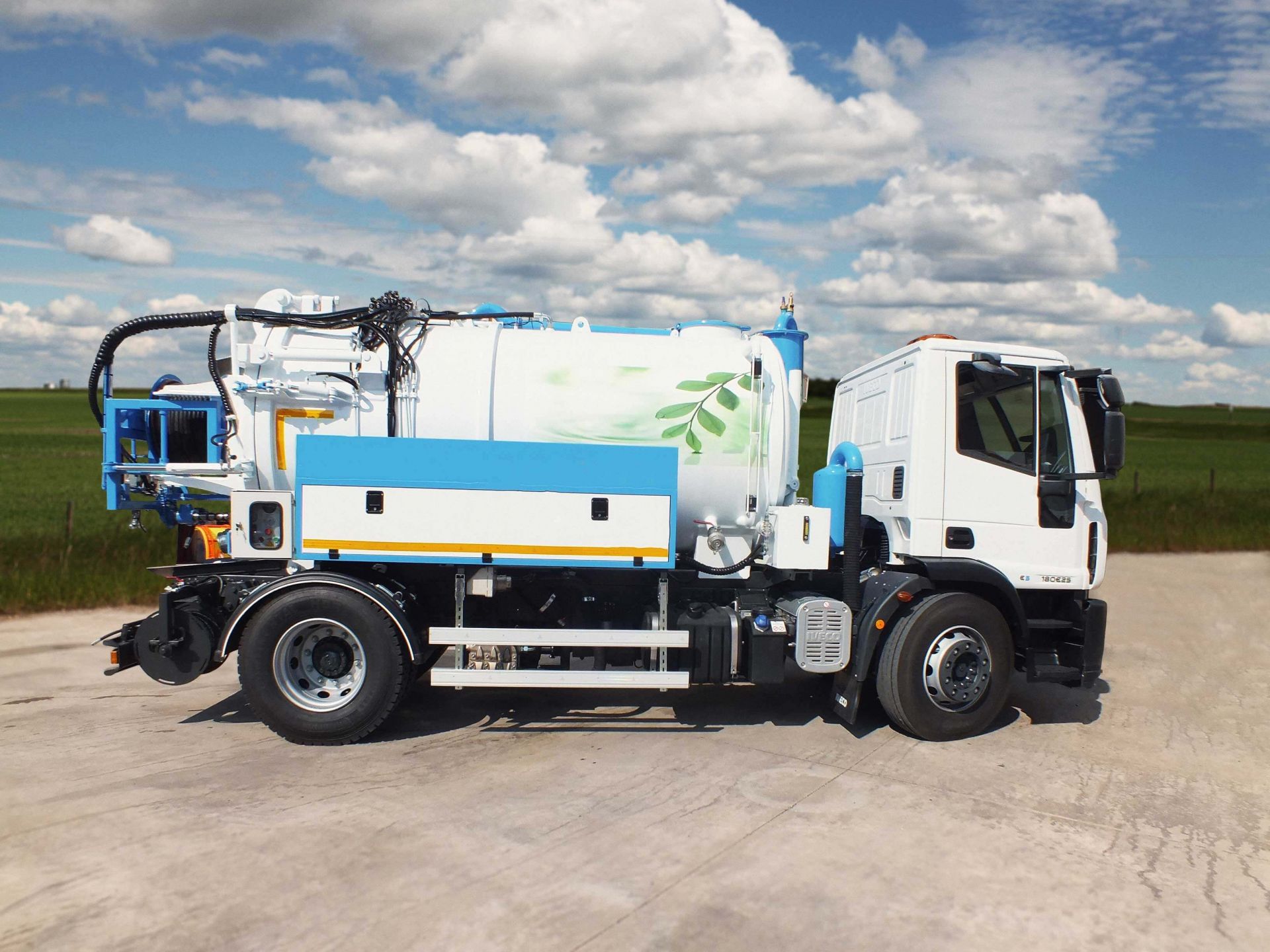

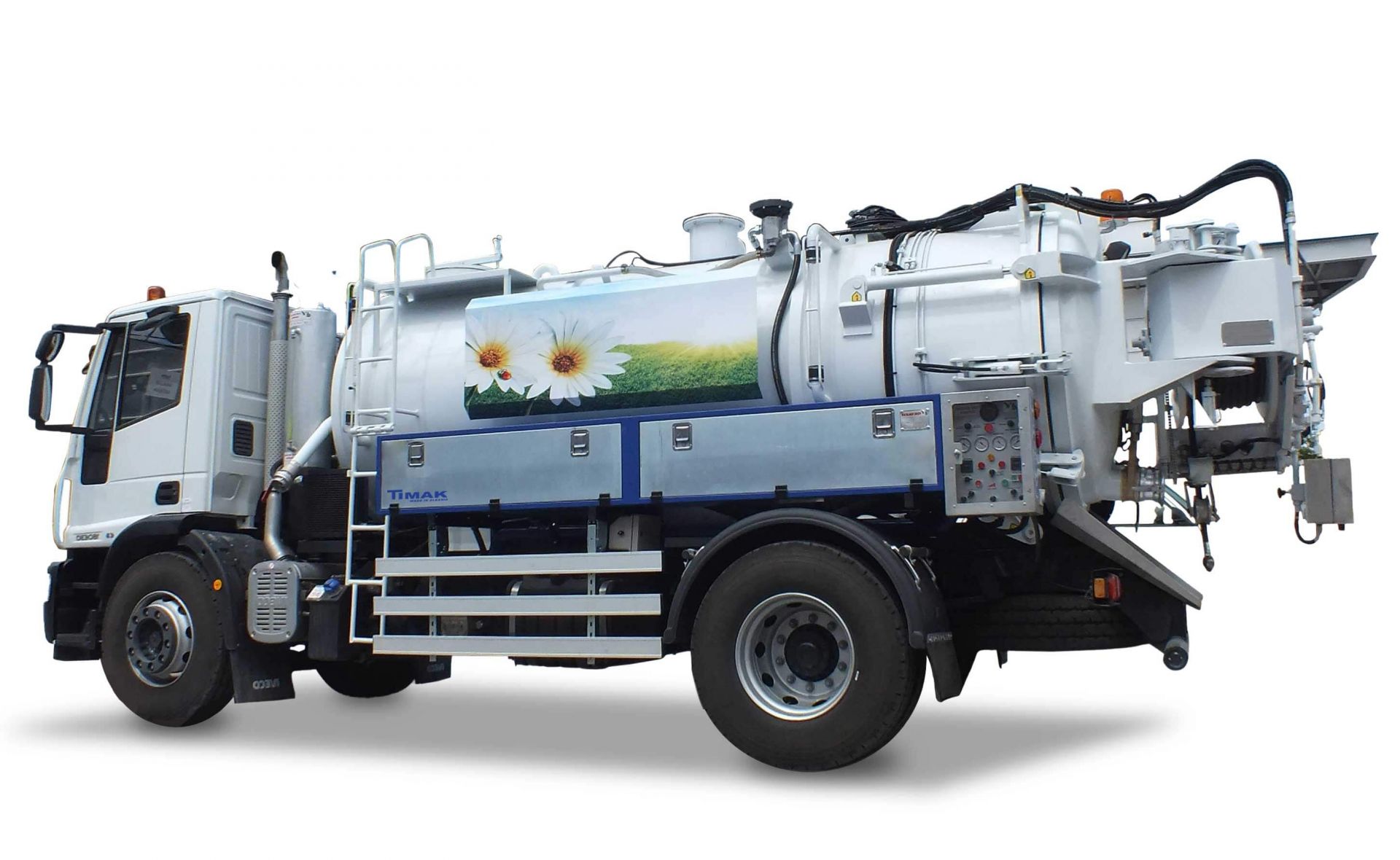

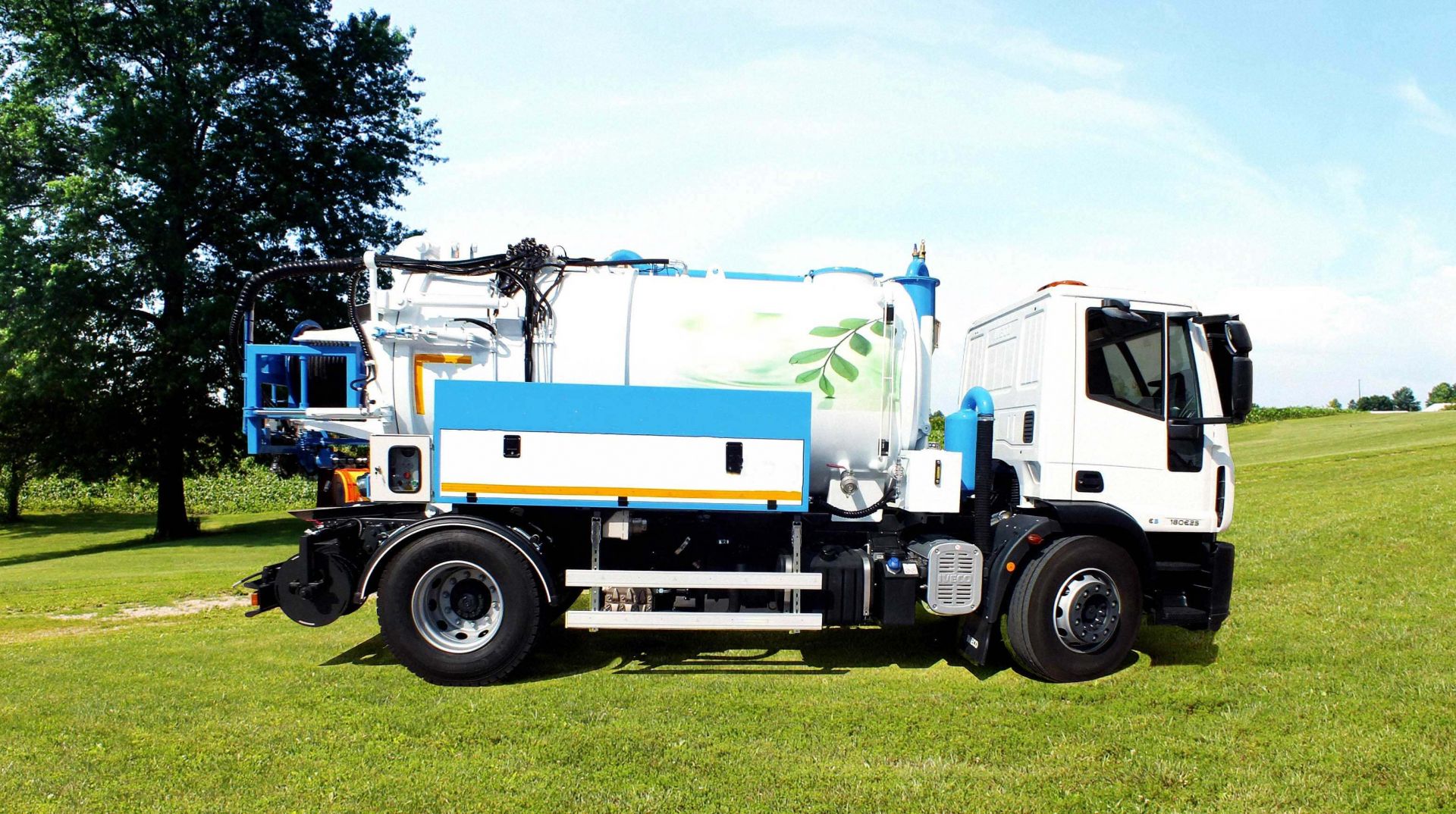

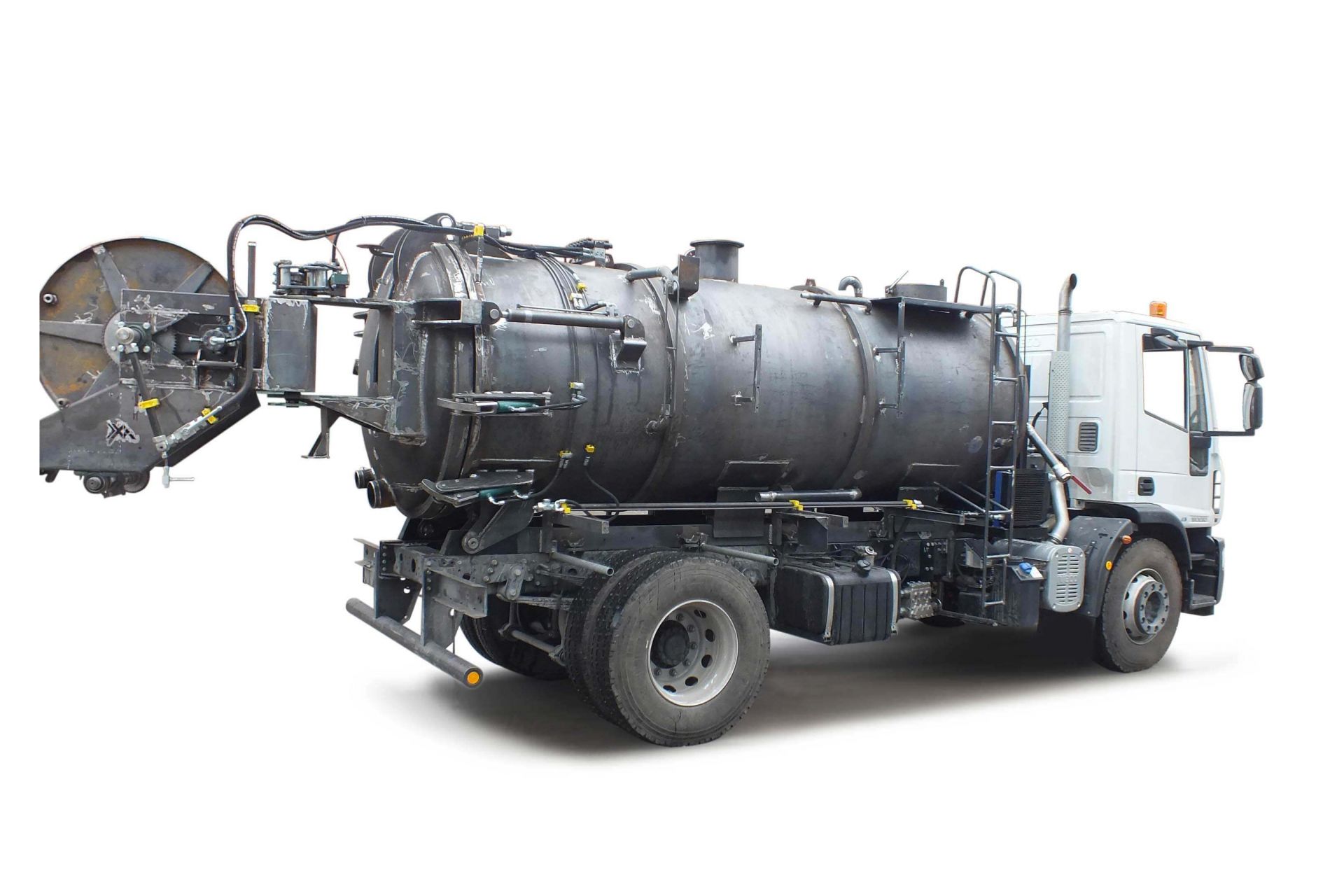

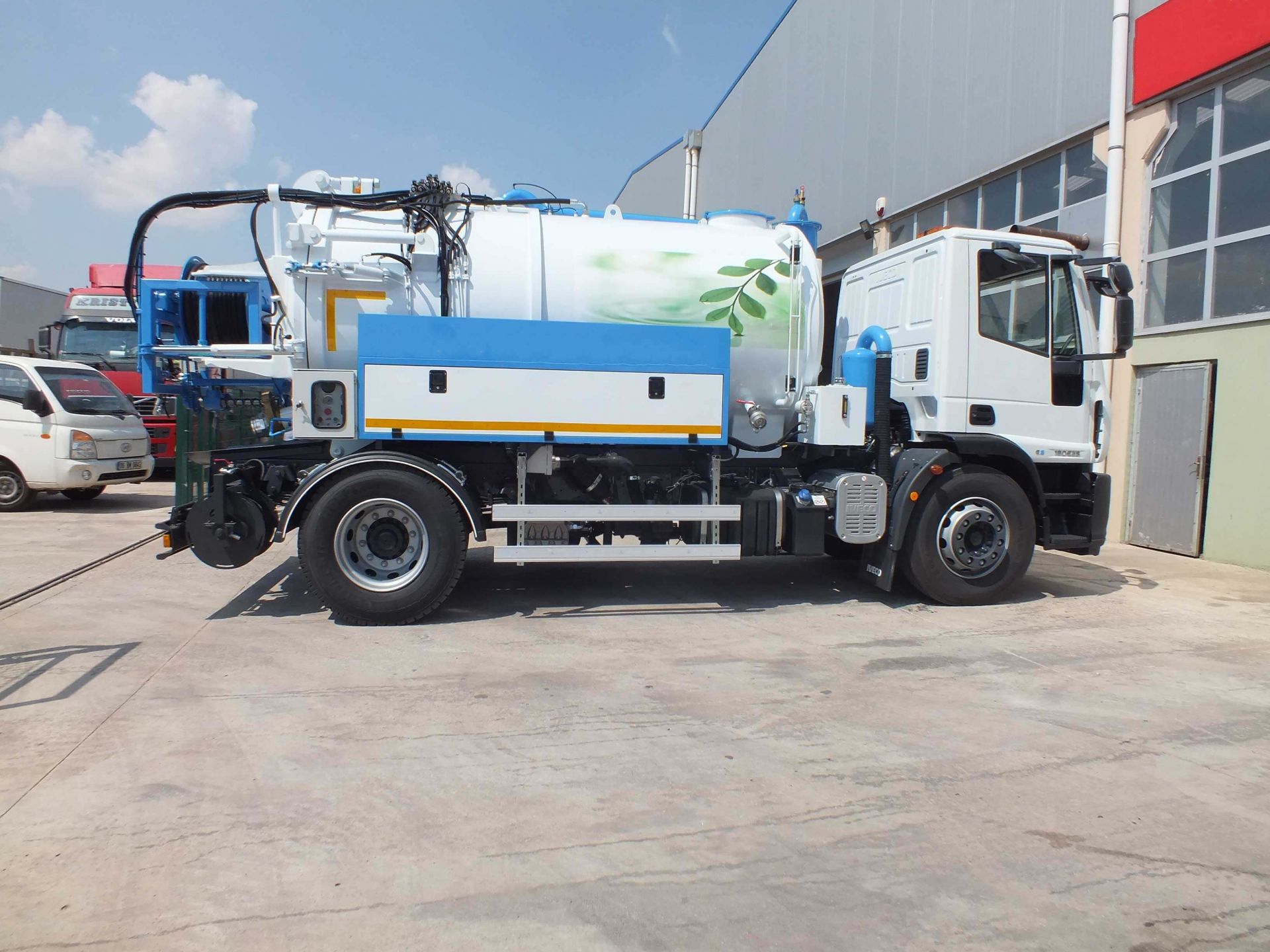

Canal Jetting Vehicle
The canal opening jetting vehicle is specially equipped on-board equipment designed to open the plugged sewer ducts with pressurized water. Volume of the water tank mounted on the vehicle; The axle of the vehicle and the maximum load weight are taken into consideration. The water from the tank is pumped through the high pressure hose to the septic ducts by the high pressure water pump. Power transmission to the pump is carried out using an intermediate gearbox. The hose can be as desired length and the hose reels are produced hydraulically or mechanically in accordance with the needs of our customers.
There is also a washing gun available for washing in the equipment. Water tanks can be filled from a hydrant or other vehicles via tank filling valves or manhole covers on the tank. Our equipment is designed in accordance with the needs of our customers and is produced in the best quality and the most suitable features to meet the needs.
Canal Jetting Vehicle
Type | Canal Jetting Vehicle |
Tank Volume | 3.000 lt. – 10.000 lt. |
Clean Water Tank material | 304 & 316 Cr-Ni |
Tail Gate | Full hydraulic |
Water pump | 100 bar – 250 bar |
Pump Flowrate | 150 lt/dk. – 425 lt/dk. |
Pressure regulator | Pneumatic |
Main Hose Reel | Hydraulic 60-200 mt. Hose Length |
Secondary Hose Reel | Manual or Hydraulic 60-100 mt. Hose Length |
Manhole/Wheel Lifting Crane | 250 & 400 kg. capacity |
Standard Accessories
2 Cylindrical Rotating Lamps | 1 Coupling Spanners | 1 Projector |
1 Egg Type Channel Opening Nozzle | 1 Oval Type Channel Opening Nozzle | |
OPTIONAL ACCESSORIES | Stainless Steel Tank | Hydraulic Electric Crane |
High Pressure Pump up to 300 Lt / min Capacity at 200 bar | ||
Drum Swivel Feature Up to 135° | Remote Controlled Monitor | Hydraulic Auxiliary Hose Reel |
