VACCINE CARRIER

The Timak Vaccine Carrier uses an engine driven refrigeration system that takes the temperature down to a staggering –28° C.

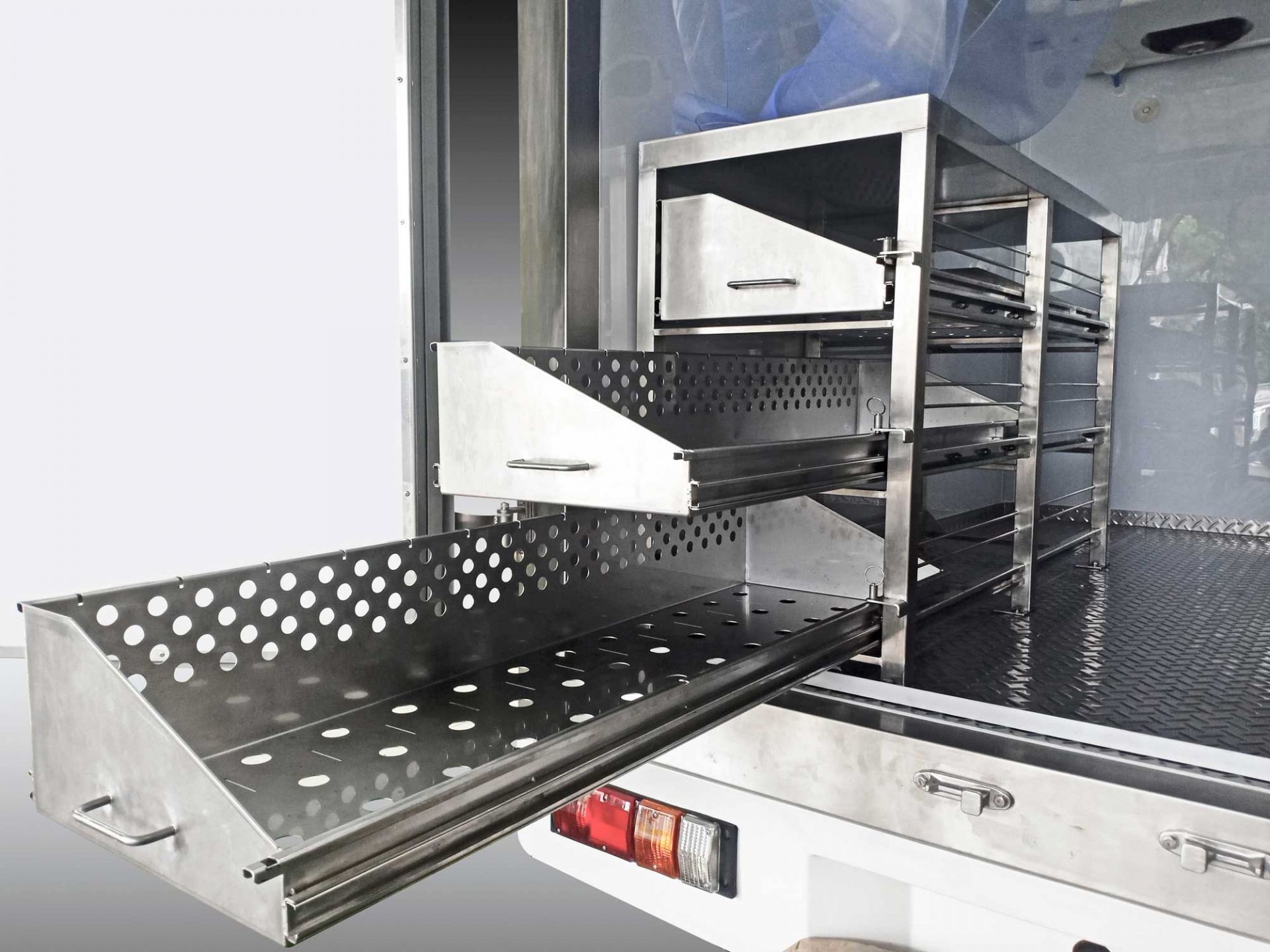

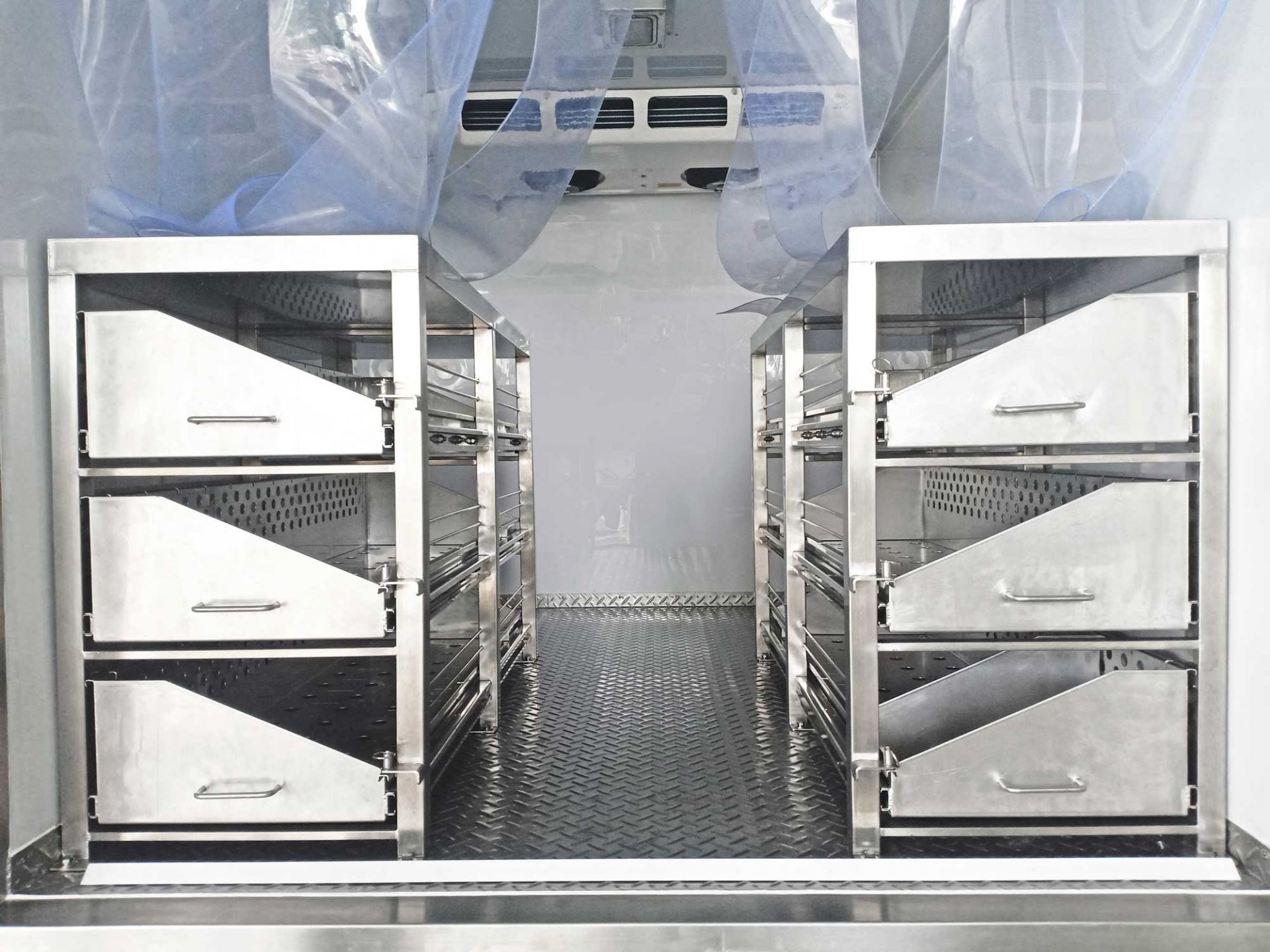

The cargo box interior is fully insulated with high density PU sandwich panel technology. It has a fully sealed finish and anti-bacterial washable surfaces. The insulated floor is trimmed with durable plywood and a washable anti-slip PVC covering. A unique racking system on two sides of the cargo box allows for the storage of up to 5,000 vials of vaccine.

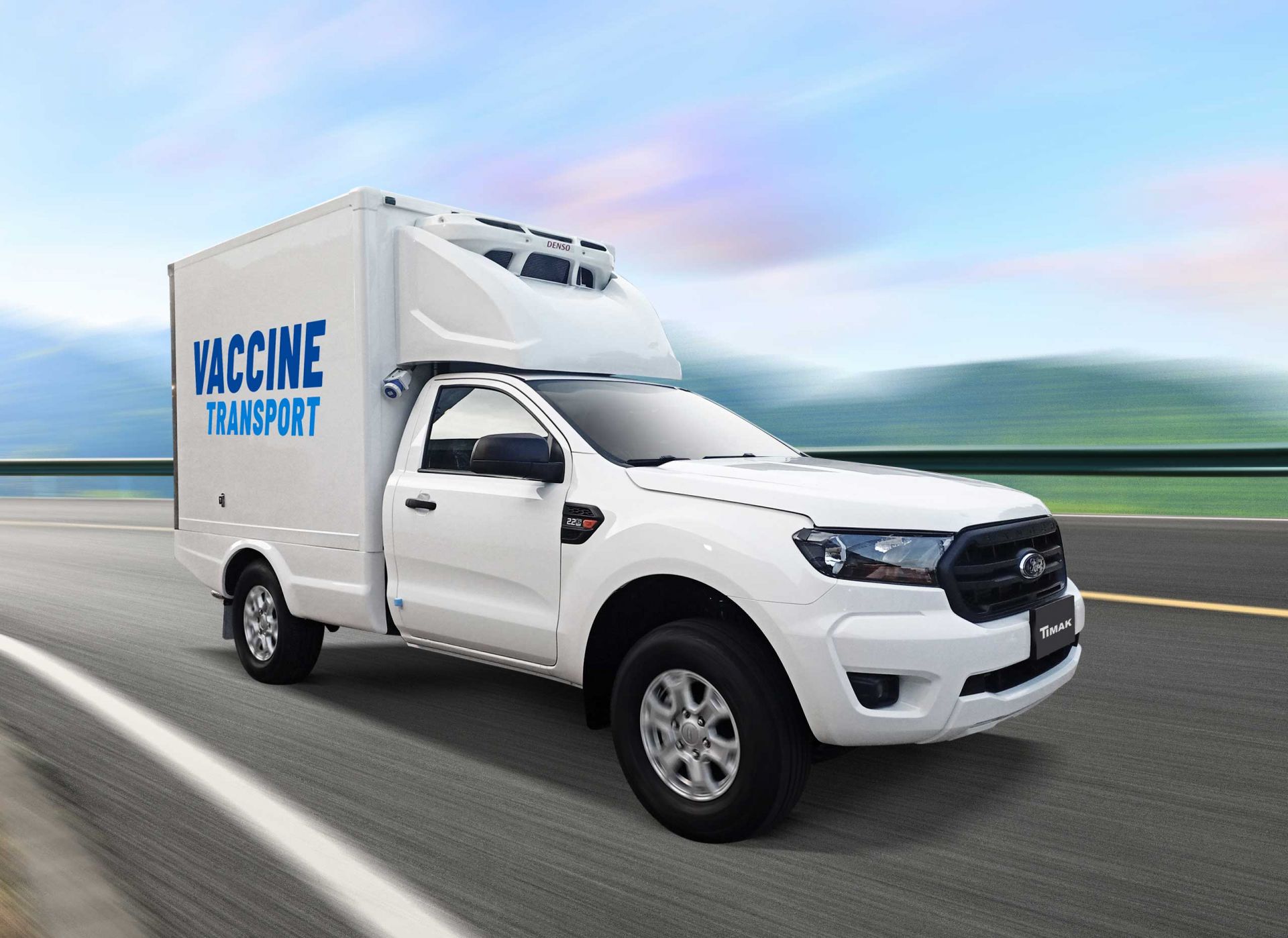

The Timak Vaccine Carrier is built on the load box of a 1-Ton 4X4 Pickup Pickups provide agile handling over tough terrain and where basic road infrastructure is crumbling or non-existent. The entire modification has been carefully engineered to fit within a 1-Ton 4X4 Pickup’s maximum permissible load weight (GVM).

KEY FETURES

Rotomoulded cabinet and adjustable shelves	230VAC & 12VDC connection – providing flexible operation alternatives	Door contacts (to cut off evaporator fan),to limit the cold exchange when door is opened
Integrated 2 x 12V DC battery & charger	Battery guard- Preserves refrigerator battery from complete discharge	Integrated heating function, for operations during winter conditions and cold countries
Digital temperature control for accurate temperature setting	Crash tested according to ECE R80 74/408/EWG	Forced air ventilation
Automatic defrosting	Visual and audible alarms	Contact for remote alarm
Removable and magnetic gaskets

Integrated control Panel

Electronics controller with integrated	Digital temperature display	Independant control and display sensor
Visual and acoustical temperature alarm	Operates on 12 V vehicle battery or 220-240 V mains supply	Independent operation for up to 16h using the 2 internal 12V batteries
Low energy consumption thanks to superior insulation	Simultaneous cargo cooling and battery charging

Highest insulation value

Rotomoulded body construction:rust free and extremely robust

PU foam insulation guarantees highest possible hold over time

Double magnetic gasket system and transport-proof closing system ensures tight sealing

High Storage capacity

High storage per square meter in terms of net volume, with a very versatile inner volume utility due to multiple user friendly rails allowing modularity.

Special Features

Fast and secure fastening with lashing strap set supplied as standard	Fitting and dismounting in a very short time without any tool	Drain water condensation container located behind passenger seat for easy removal and maintenance
Excellent temperature distribution with air circulation system	High-performance multi-LED interior light

Customization Detail

Battery of vehicle is connected to the refrigerator’s batteries and supplies power while the vehicle’s engine is turned on

Outlet for external power supply is equipped to charge the refrigerator’s batteries while the vehicle is stationed

Roof rack enables to load non-vaccine items and dry supplies as well as the spare tire.
