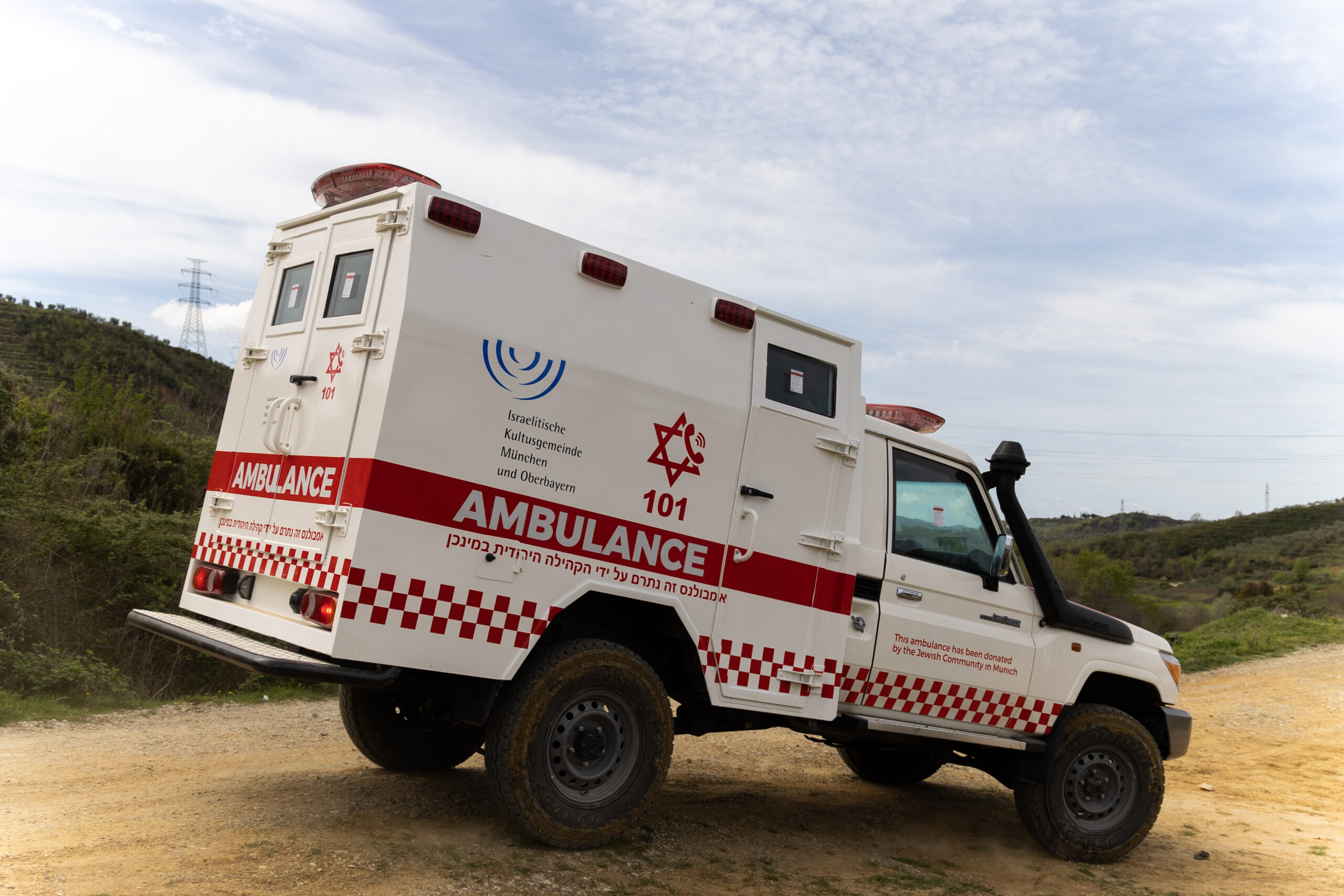

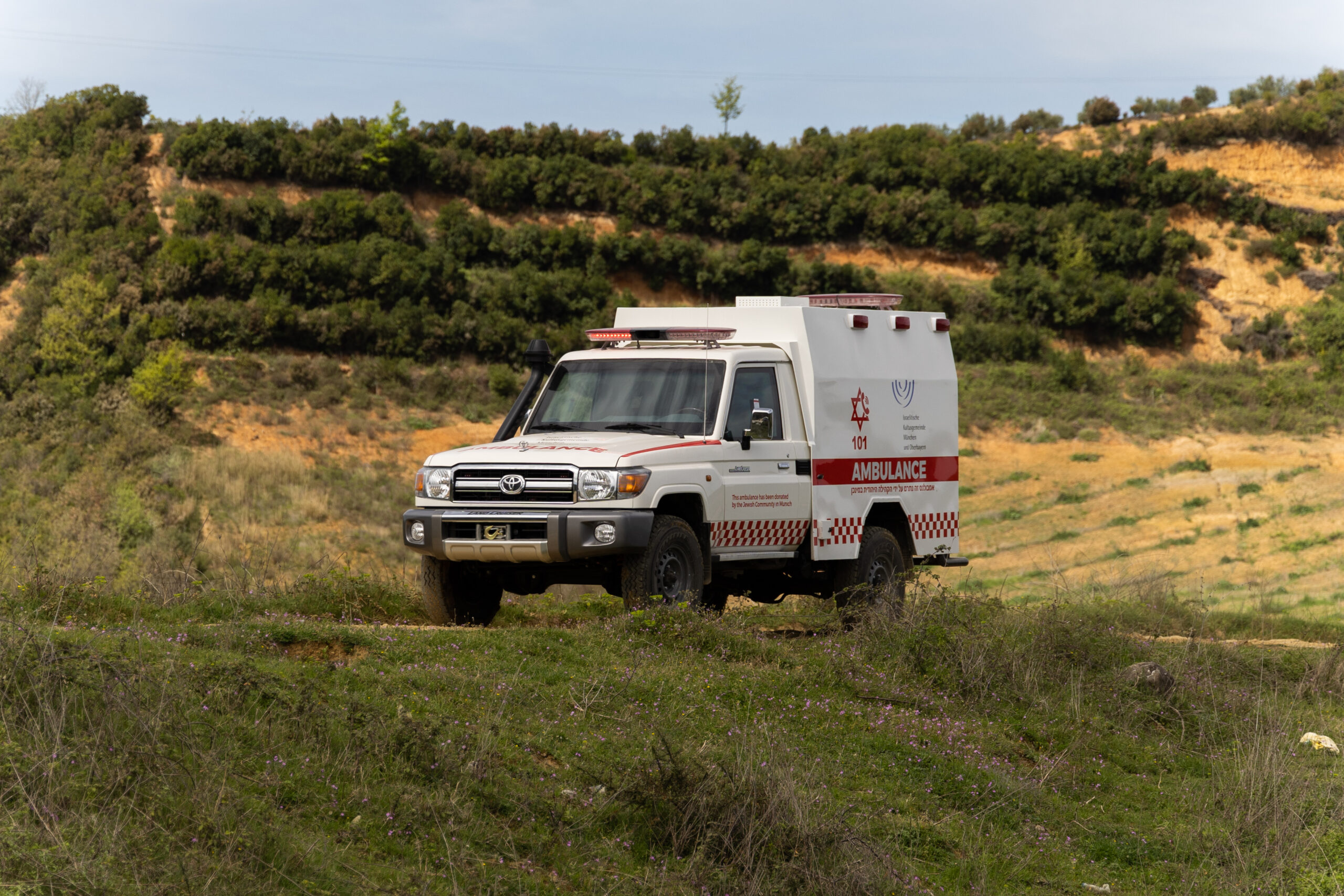

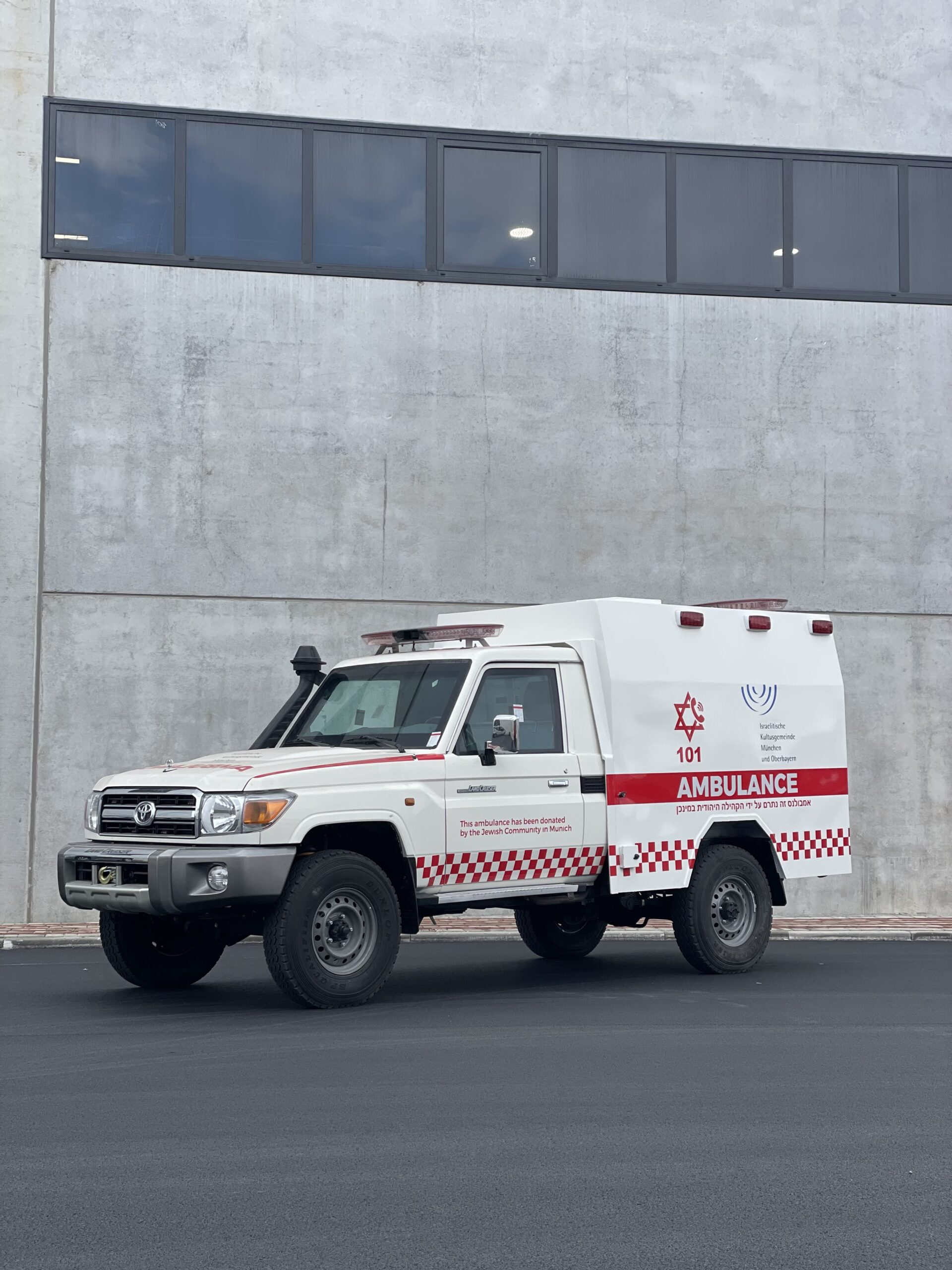

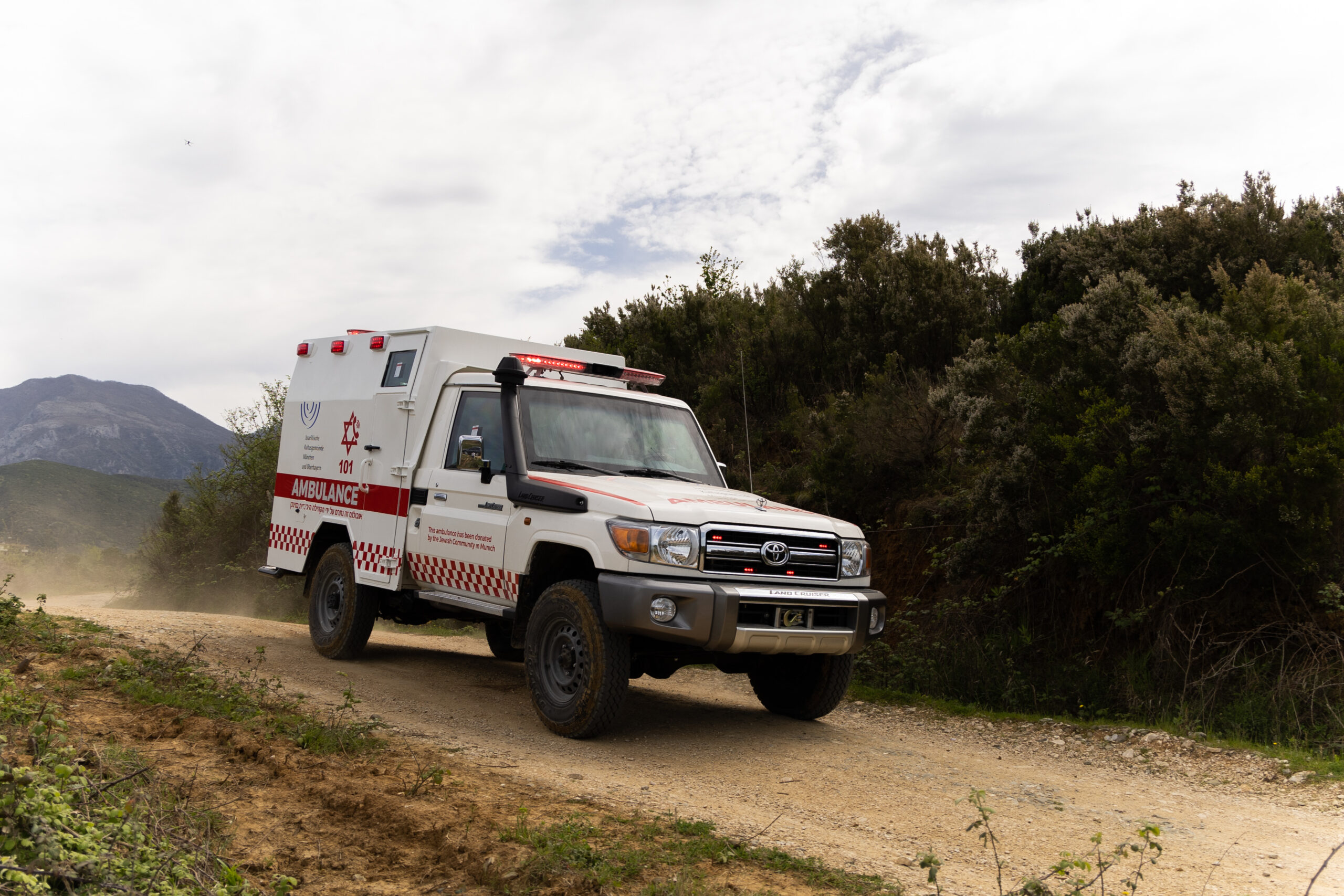

Ballistic-Protected Armored Ambulance for Conflict Zones
TIMAK’s Armored Ambulance provides maximum protection and reliable medical care in warzones and high-threat areas. This combat-ready ambulance is reinforced with ballistic materials while maintaining full medical functionality inside. Ideal for defense forces, UN missions, and humanitarian organizations, it enables secure casualty evacuation and field treatment during armed conflict.
Get in touch with us to discuss your armored ambulance needs for secure and mission-ready medical operations.
Technical Information
| 1. Vehicle Types | ||

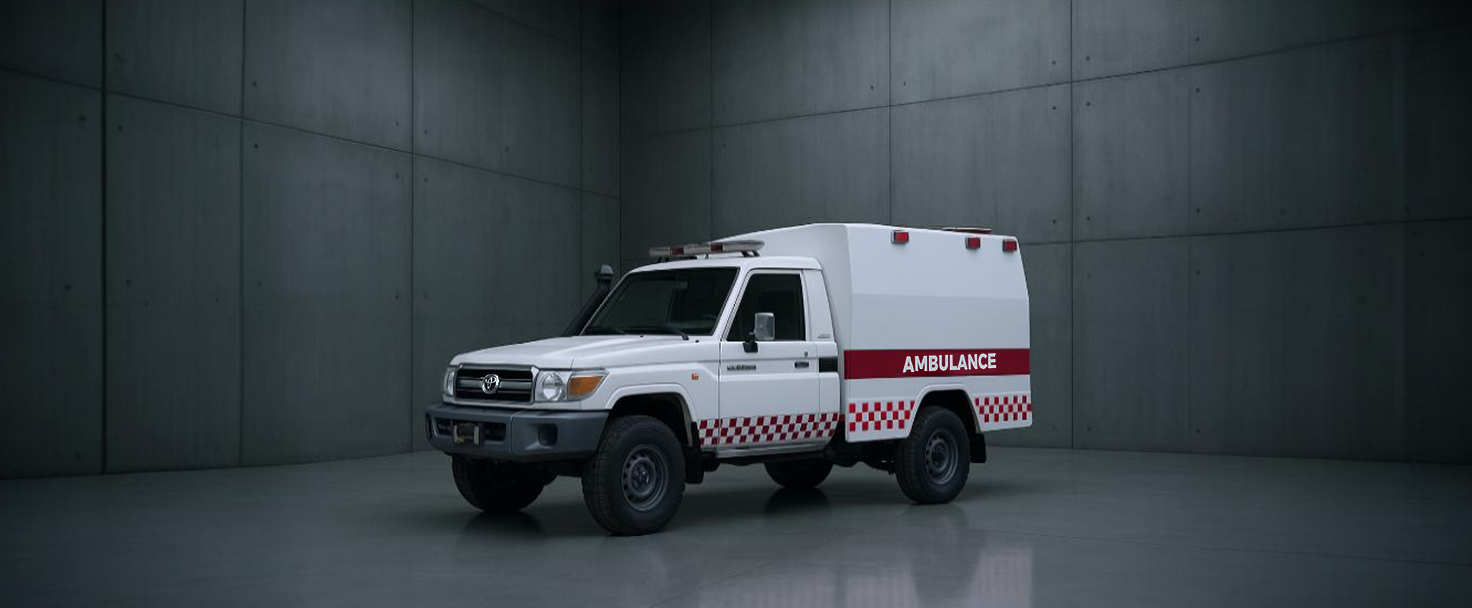

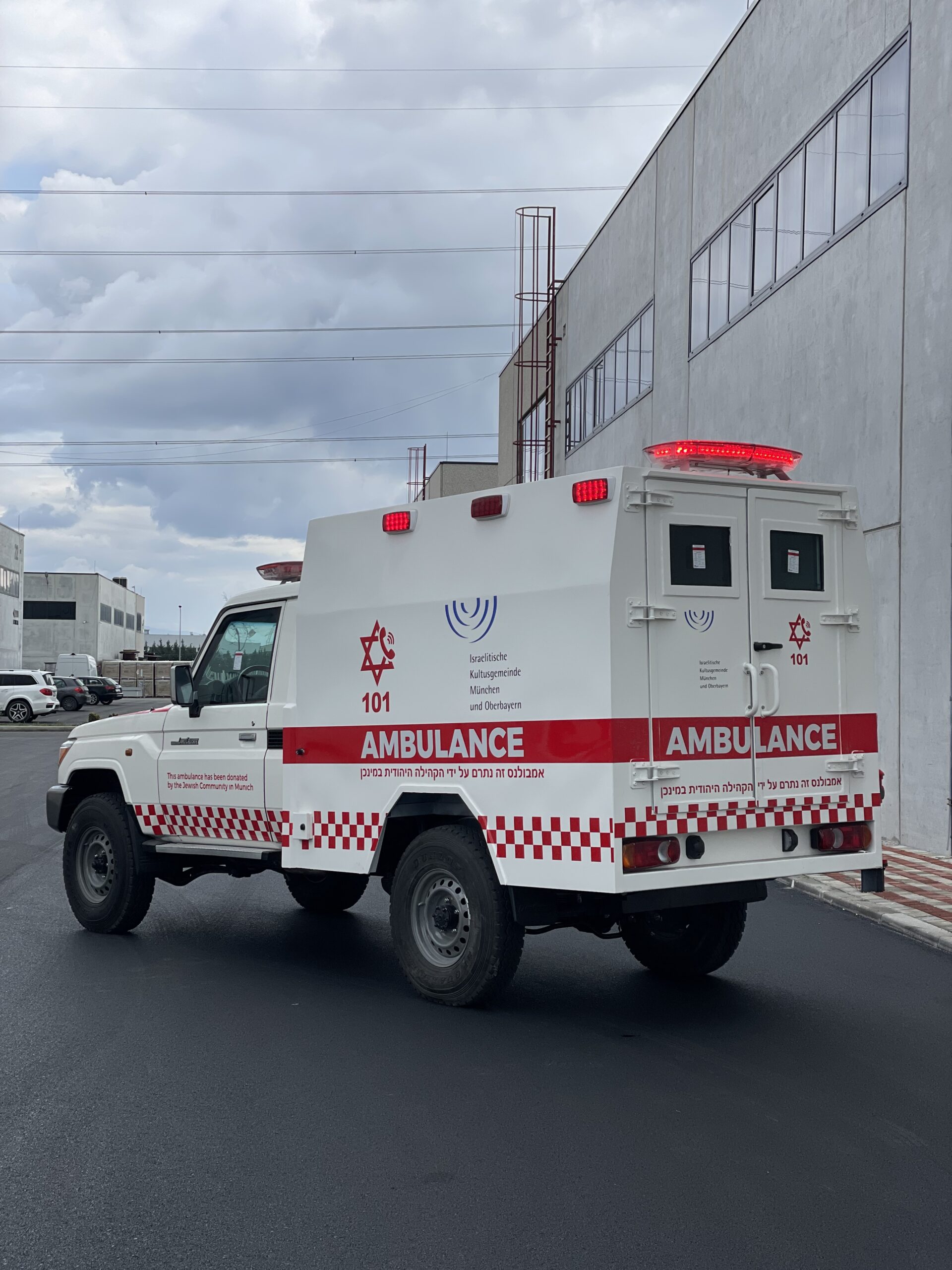

| 1.1 Van-type Armored Ambulance | 1.2 Pickup-type Armored Ambulance | 1.3 Other custom vehicle platforms available upon request |
| 2. Protection Levels (According to EN 1063 Standard) | ||
| 2.1 BR4 – Protection against handguns (up to .44 Magnum) | 2.2 BR6 – Protection against high-power rifles (e.g., 7.62x51mm NATO) | 2.3 BR7 – Protection against armor-piercing rounds (e.g., 7.62x51mm AP) |
| 3. Suspension System | ||
| 3.1 Front Suspension • Coil Spring • Hydraulic Telescopic Shock Absorber • Anti-Roll Bar |
3.2 Rear Suspension • Leaf Spring • Hydraulic Telescopic Shock Absorber • Anti-Roll Bar |
|
| 4. Tires | ||
| 4.1 Tire Size: 335/80 R20 (Run-Flat) | 4.2 Quantity: 4 | |
| 5. Body Configuration | ||
| 5.1 Doors • Right Side: 2 • Left Side: 1 • Rear: 2 |
||
| 6. Capacity | ||
| 6.1 5 Patients | 6.2 2 Medical Attendants | 6.3 1 Driver |

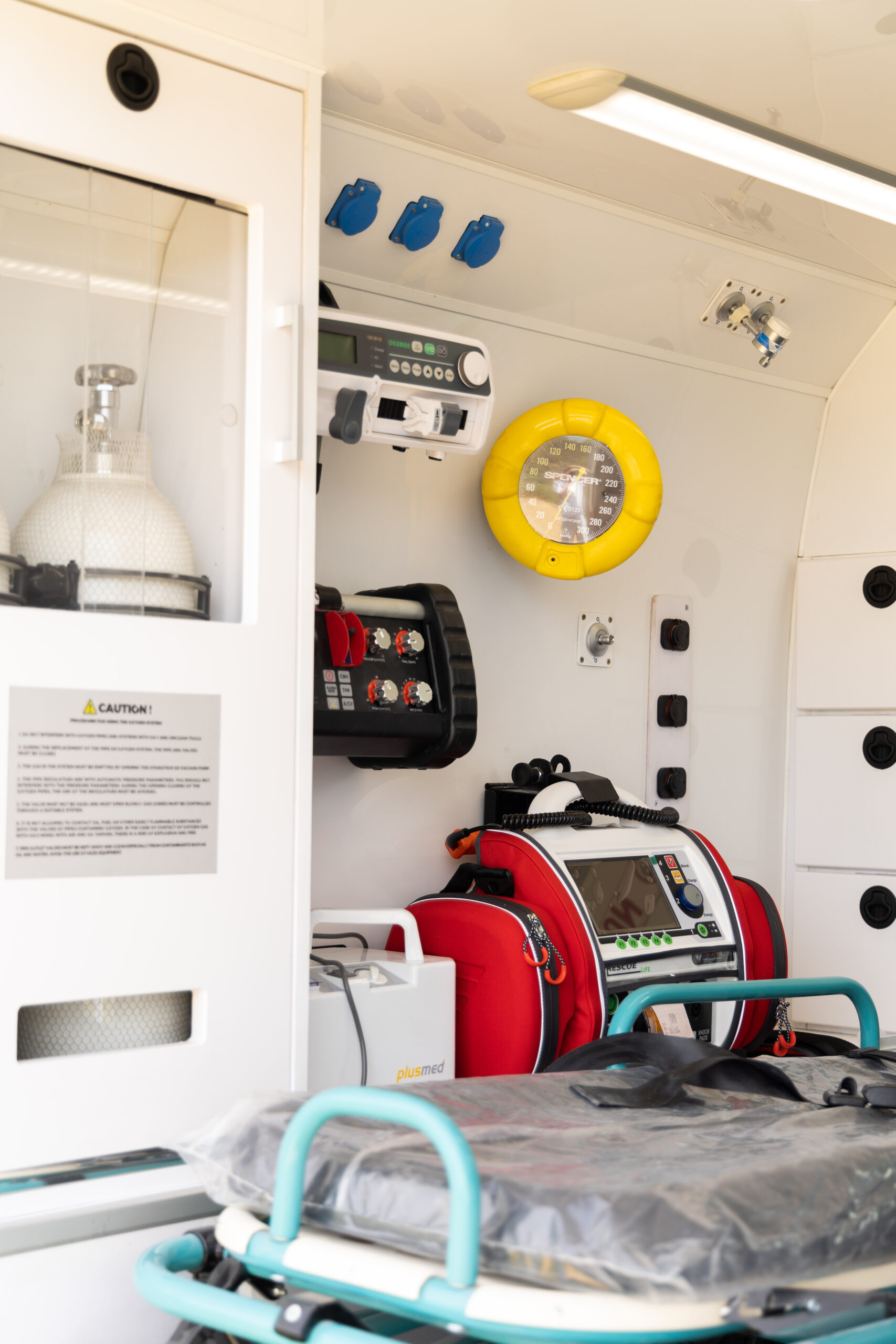

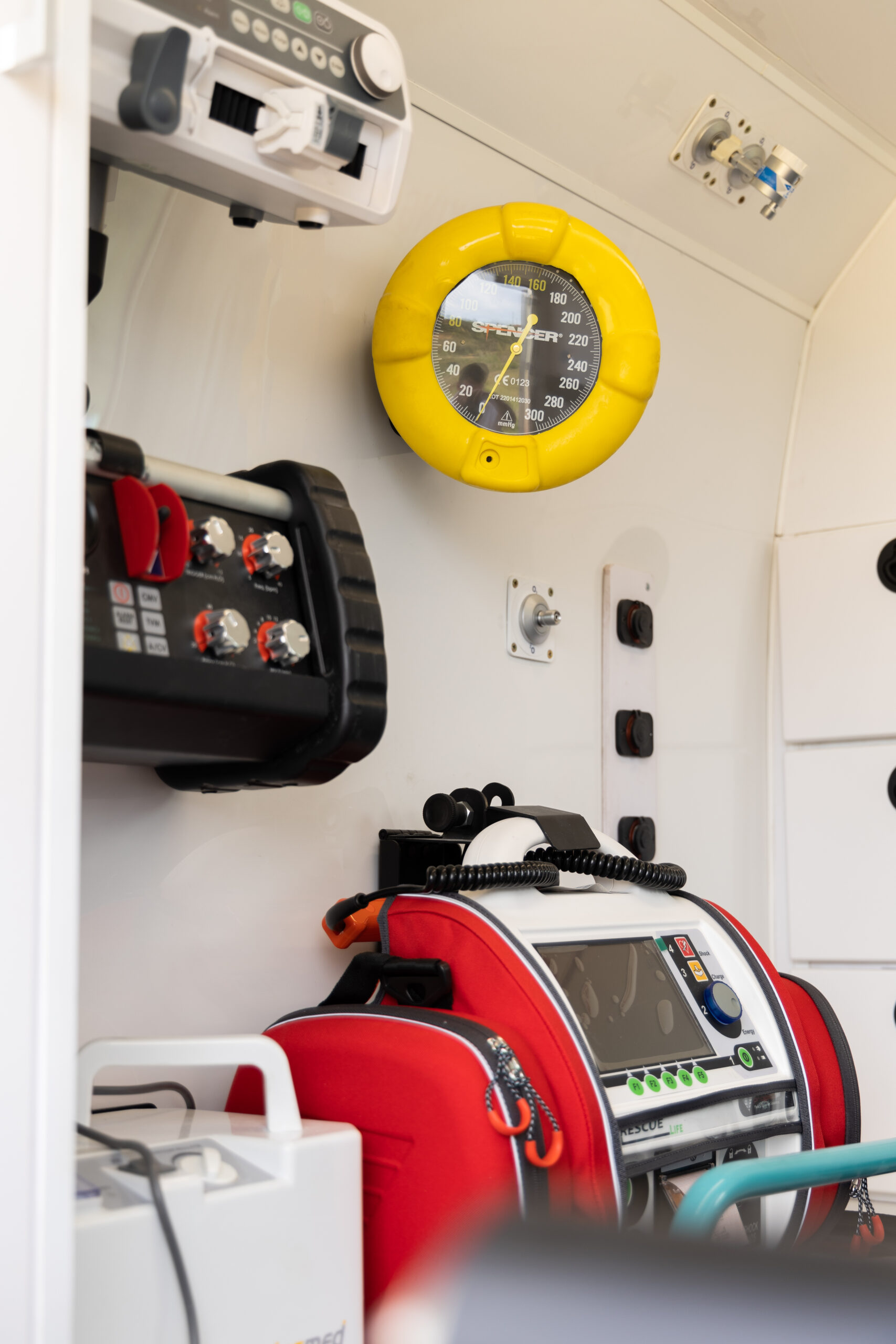

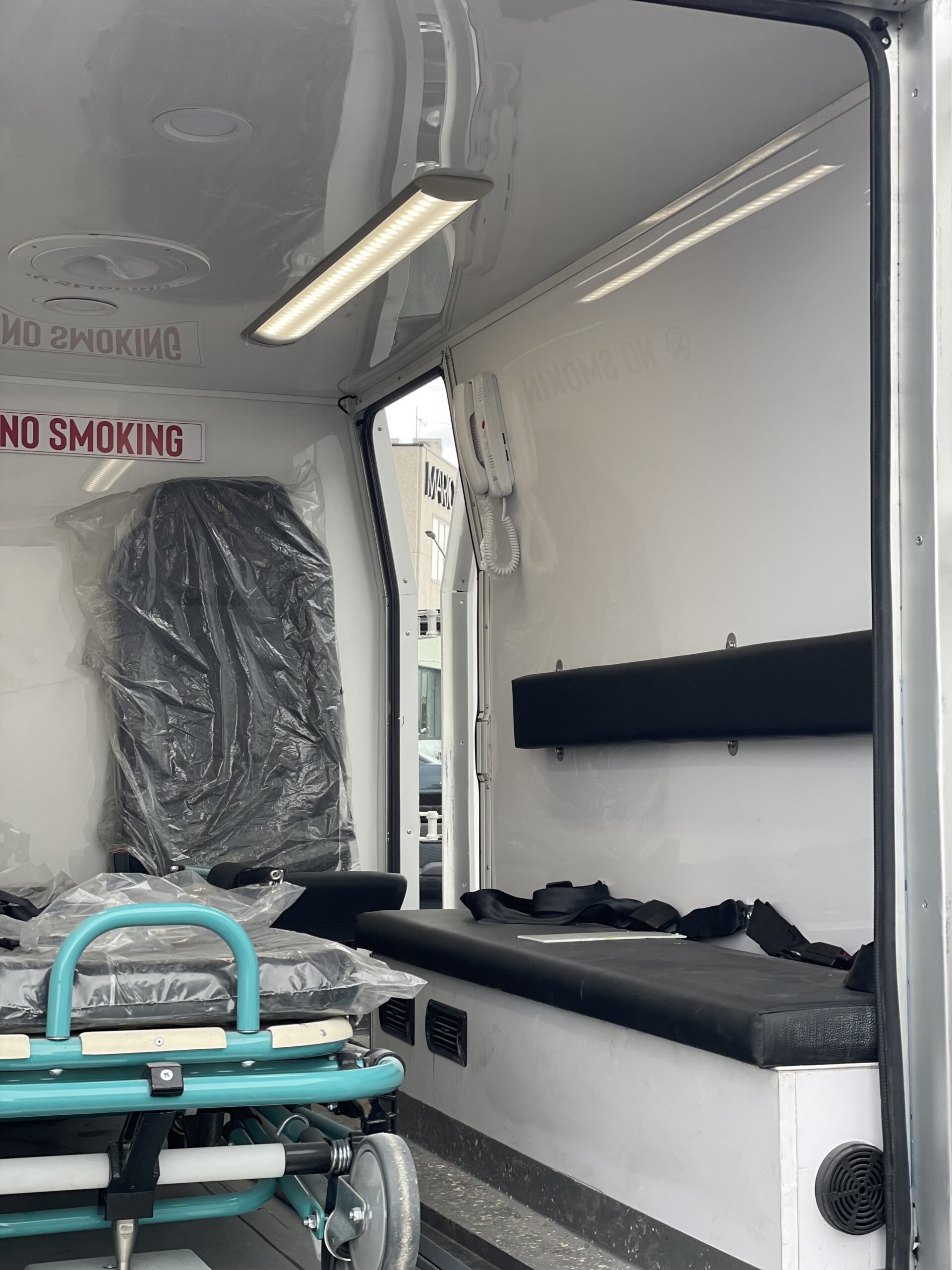

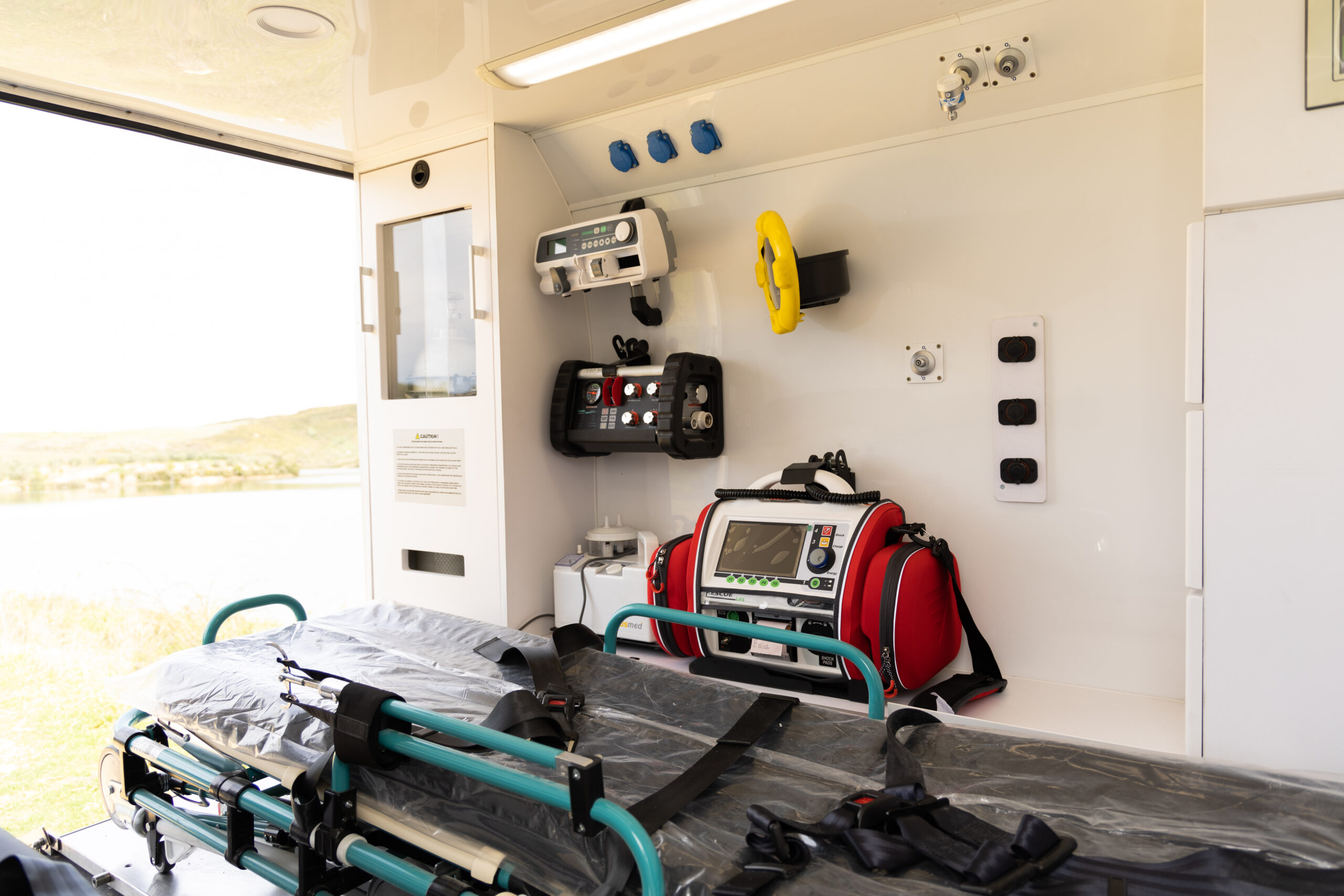

Standard Interior Medical & Utility Features

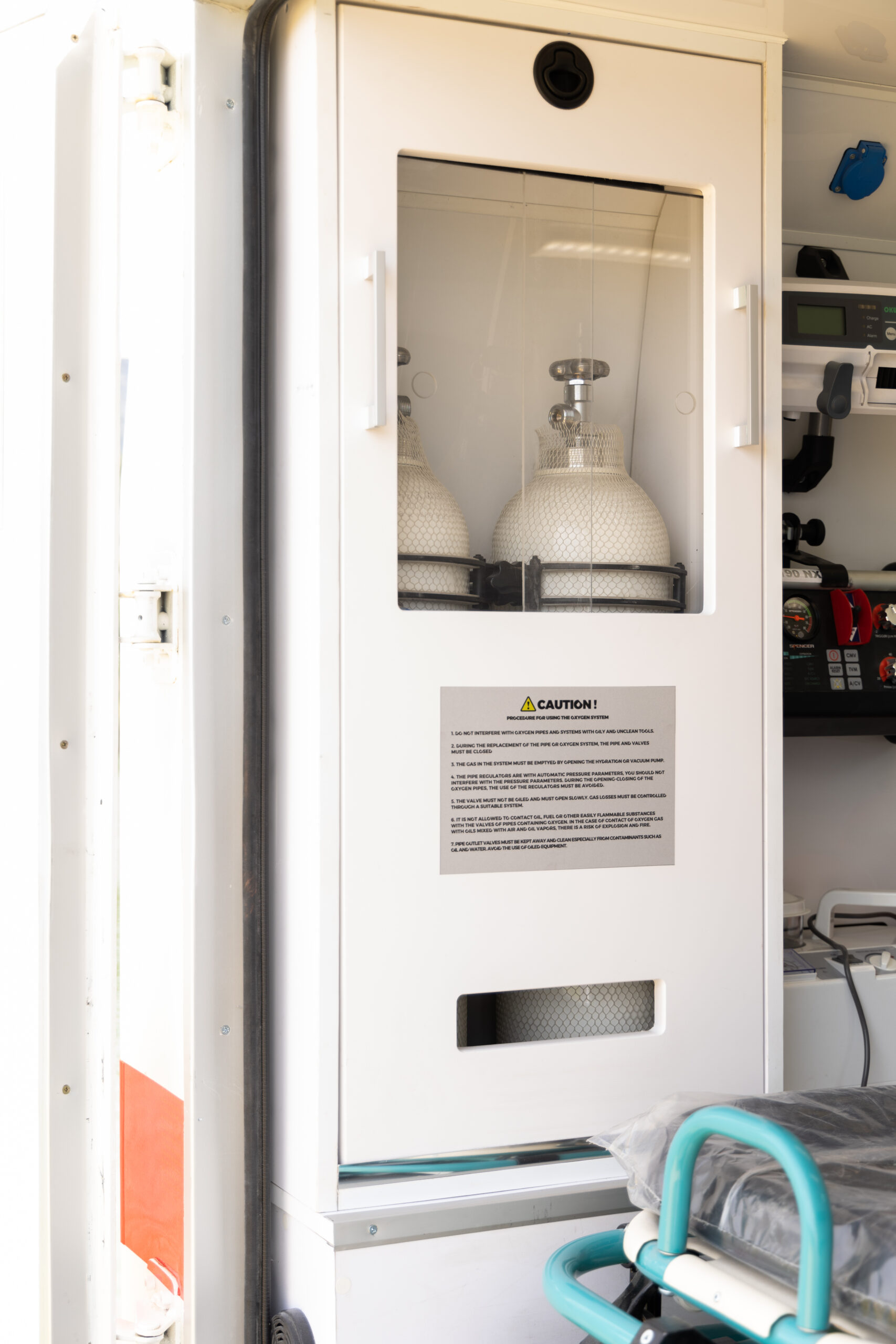

| Isolation noise & thermal insulation | Electrical system | Oxygen system |
| ABS / Reinforced wall for medical attachments / Interior coverings | Interior lighting (LED / Spots) | Control panel |
| 12V power outlets | 220V power outlets | 220V exterior power connections |
| Additional battery | Inverter | Redressor |
| Air conditioner | Heater | Roof ventilation |
| Sliding window in the partition wall | Cupboards and cabinets | Grab handle bar with IV hooks |
| Anti-bacterial & anti-slip floor covering (epoxy) | Intercom device | Lightbars with siren & exterior warning light system |
| Windows at sliding & rear doors | Mechanical/electrical step on the side door | Stretcher fixing system / platform |
| Patient stretcher | Doctor / Attendant seats | Emergency hammer |
| First aid kit | Fire extinguisher | Waste bin |
Optional Features
| Portable oxygen system (2L) | CBRN Air Filter System | Automatic Fire Suppression System |
| Spine board | Scoop stretcher | Transfer sheet |
| Head immobilizer | Vacuum mattress | Folding wheelchair |
| Sphygmomanometer | Glucometer | Thermometer |
| Pulse Oximeter | Splint set (vacuum / air) | KED |
| Cervical collars | Nebulizer | Suction unit (manual / electric) |
| Laryngoscope | Defibrillator | Ventilator |
| Multiperimeter | CPR mask | Urine bottle |
| Kidney tray | Sterile glasses | Infusion pump / Syringe |
