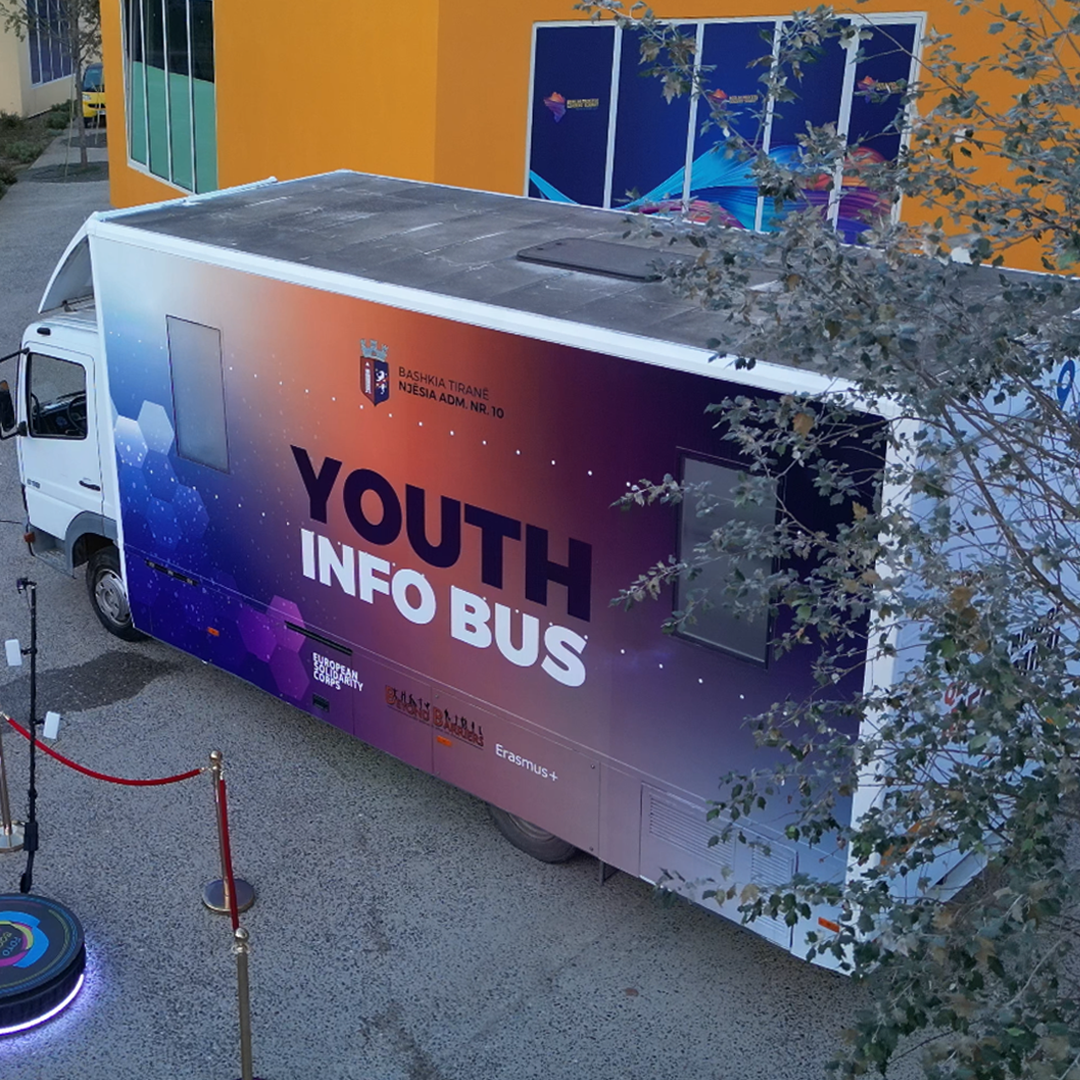

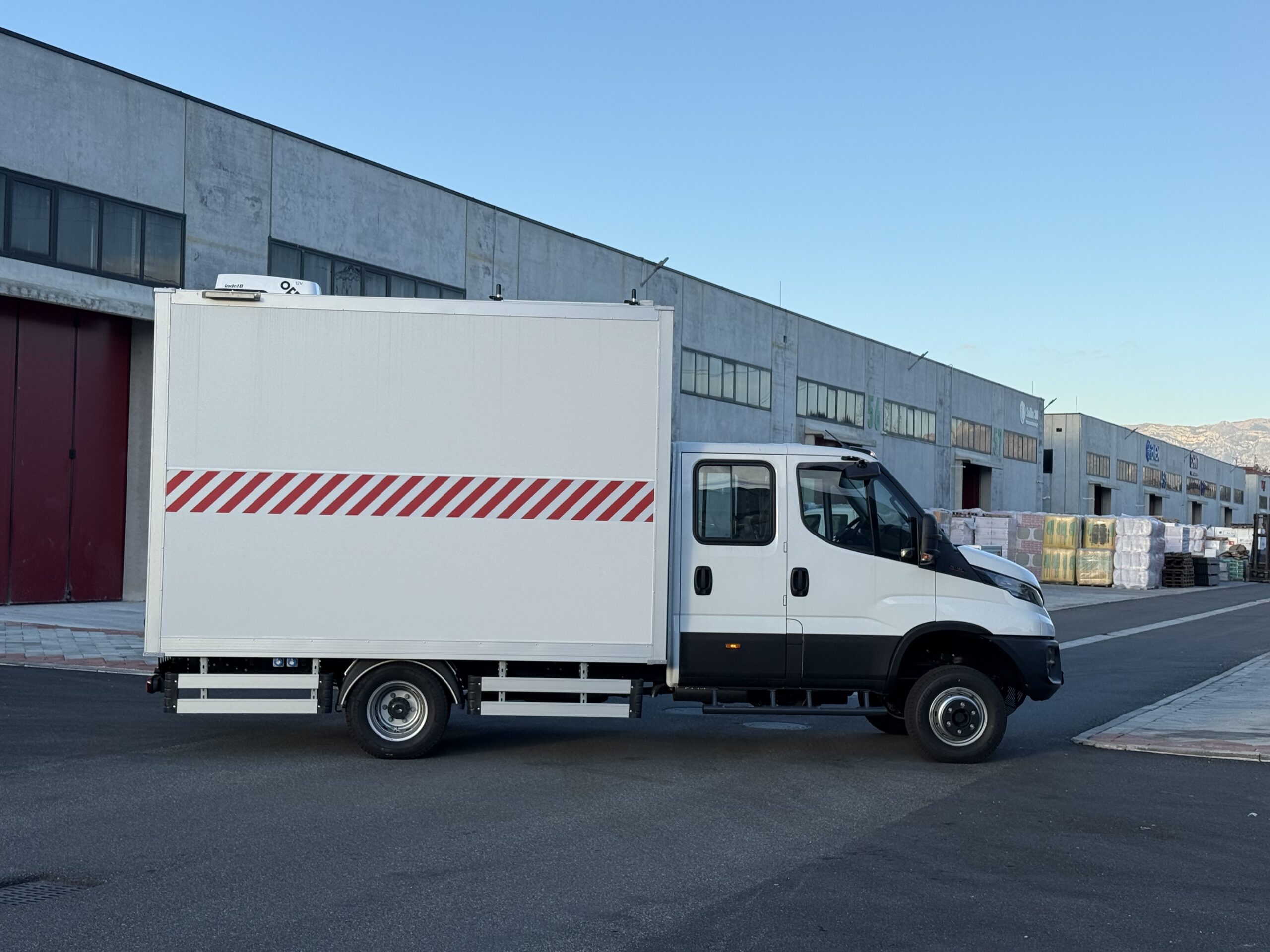

TIMAK Custom Box Trucks are engineered to match your business needs — from mobile stores and logistics to service vehicles and pop-up showrooms. With customizable interiors, reinforced structures, and branded exteriors, they offer reliability and visibility on the move. Each unit is built to maximize space, efficiency, and brand impact wherever you go.
Partner with TIMAK to design a box truck that takes your business anywhere with confidence.
STANDARD SPECIFICATIONS
1.Structure
| Structure made from anodized aluminum profiles with rounded,corrosion resistant finishing | Designed to be weatherproof, hygienic, washable,and maintenance free |
2.Construction Elements
| Walls: 40–60 mm insulated panels, reinforced for mounting equipment | Floor: Marine plywood with aluminum non-slip covering (min. 95 mm total thickness) |

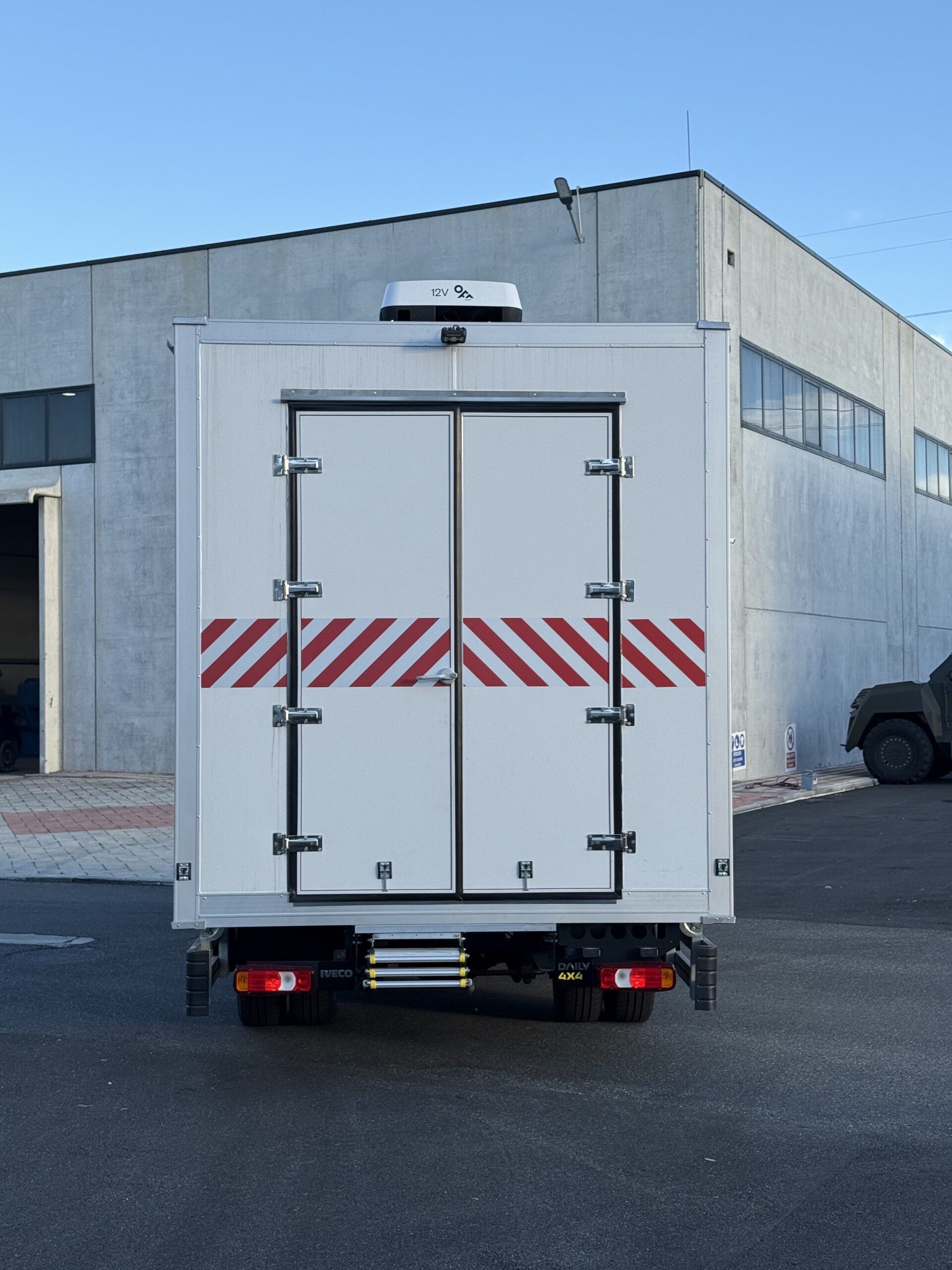

| Roof: Walkable, insulated, load-bearing with integrated safety access ladder | Doors: High-insulation aluminum door with anti-panic lock and stopper |

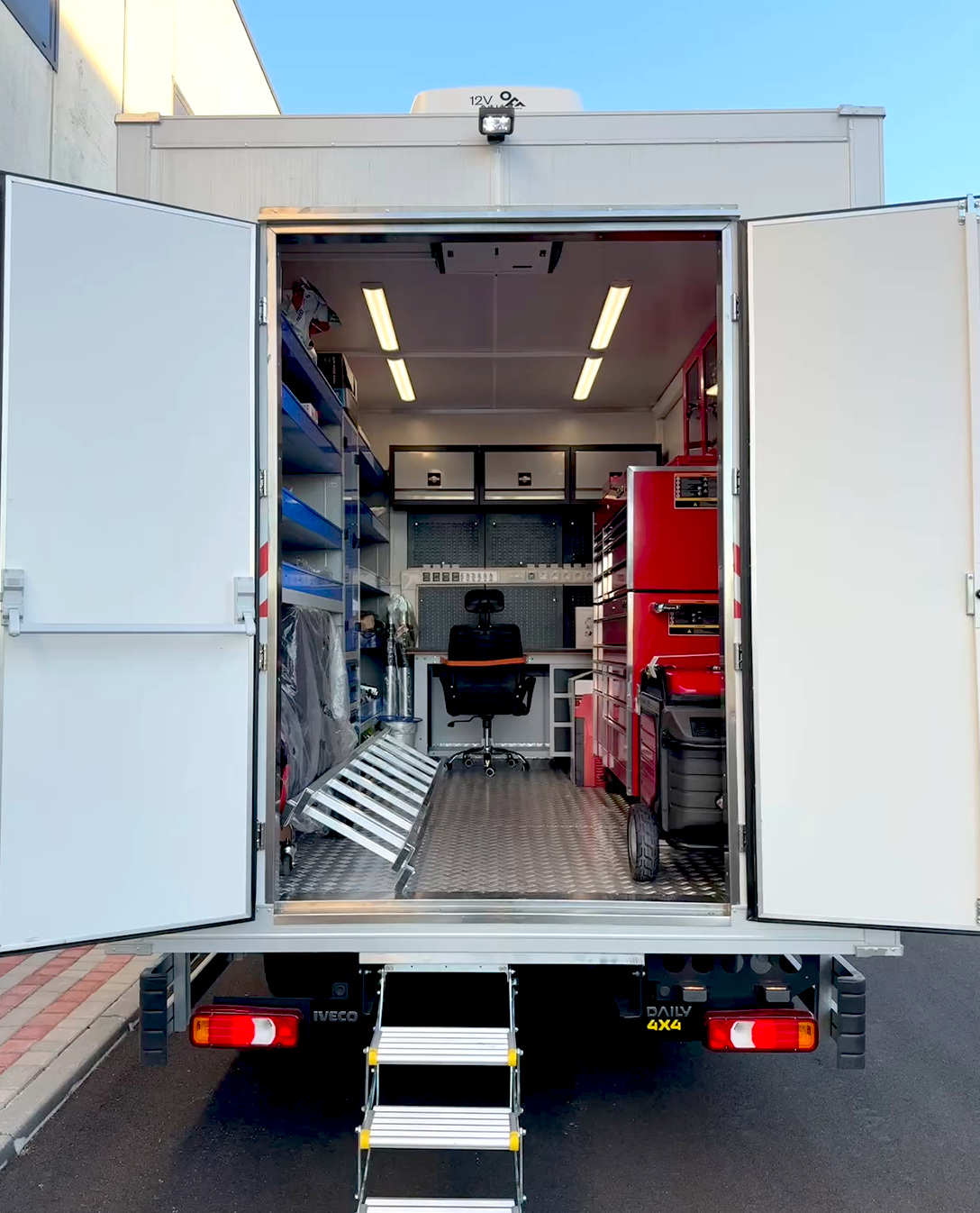

| Access: Retractable stairs and non-slip steel ramp for loading/unloading equipment |
3.Thermal & Climate Control

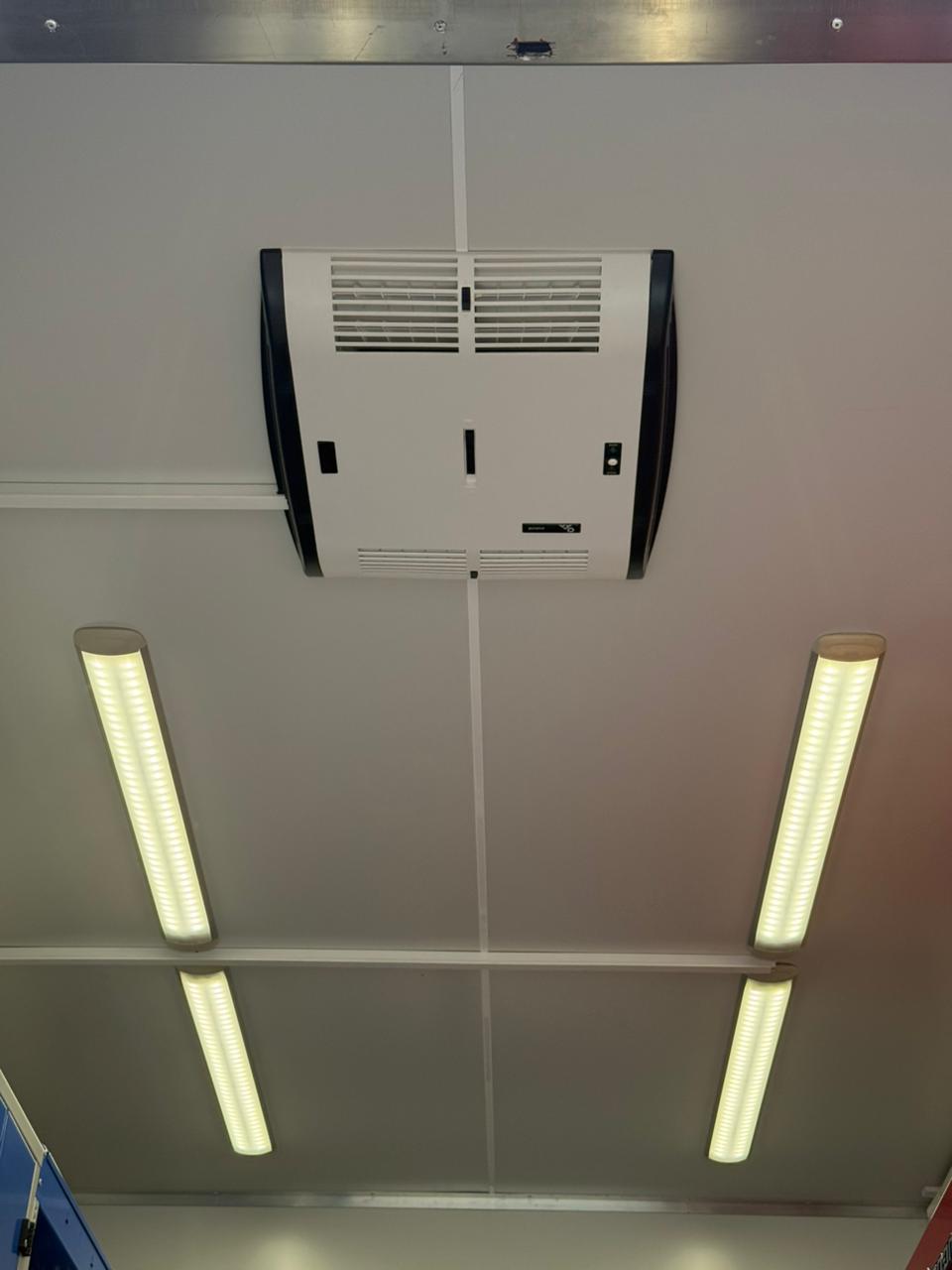

| Fully insulated for temperature stability (approx. +22°C) | Roof-mounted air conditioning system with smart power options |
| Designed for operation in harsh environmental conditions |
4.Interior Lighting & Visibility
| Interior lighting via LED slab lights and adjustable spotlights | Day and night light modes (white/red/blue) |
| Exterior safety lighting and signage included |
5.Electrical System
| Dual-source electrical design (public power & generator) | Automatic/Manual Transfer Switch |
| Electrical distribution panel with fuses and clearly labeled AC/DC outputs | Voltage meters and ammeters for each system (AC, 48V, 24V, 12V, 5V) |
| Multiple AC/DC outputs:
· 230V AC (standard and high-amperage outlets) · 48V / 24V / 12V / 5V DC with protected terminal access |
All systems protected by waterproof sockets and labeled connectors |
OPTIONAL FEATURES

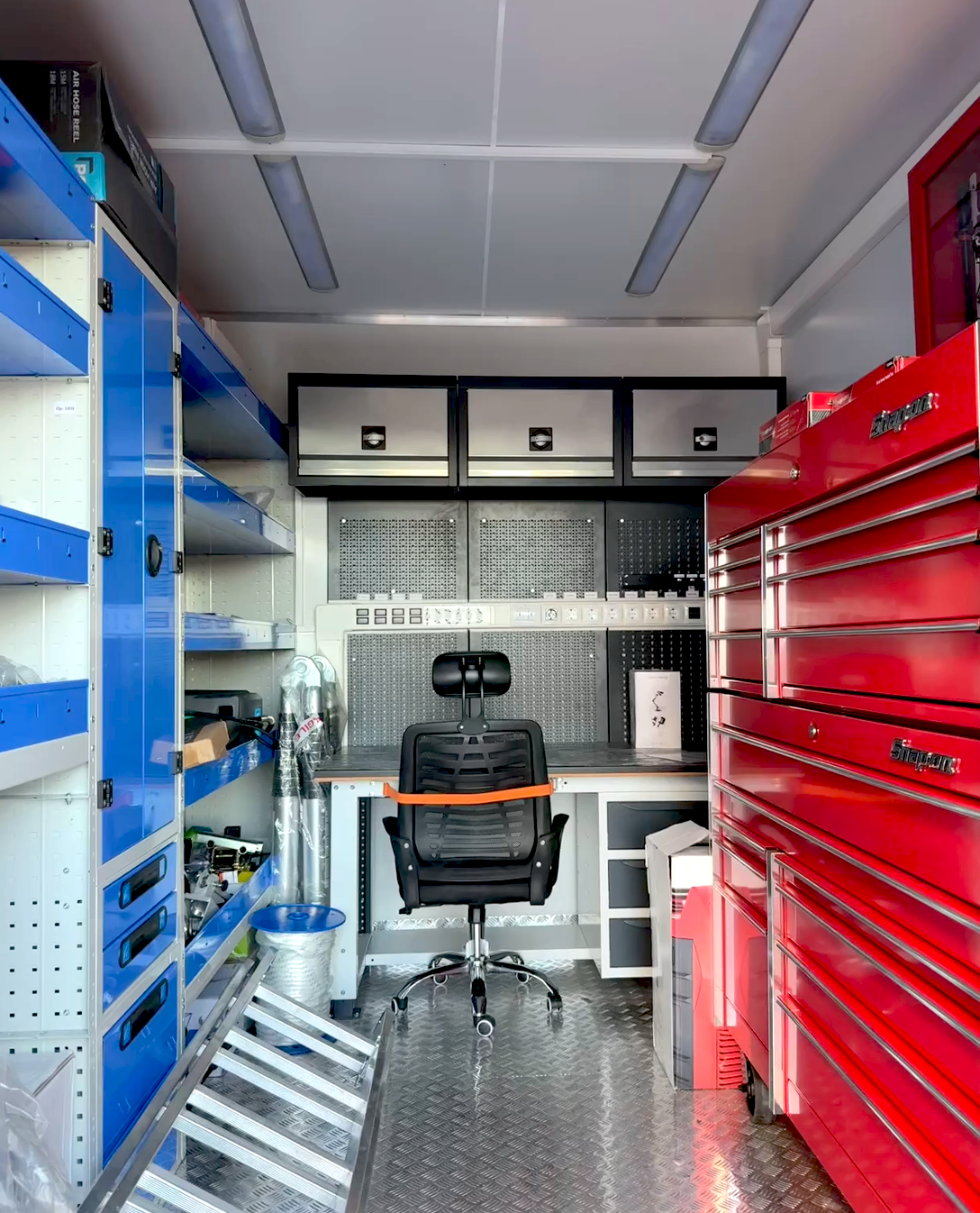

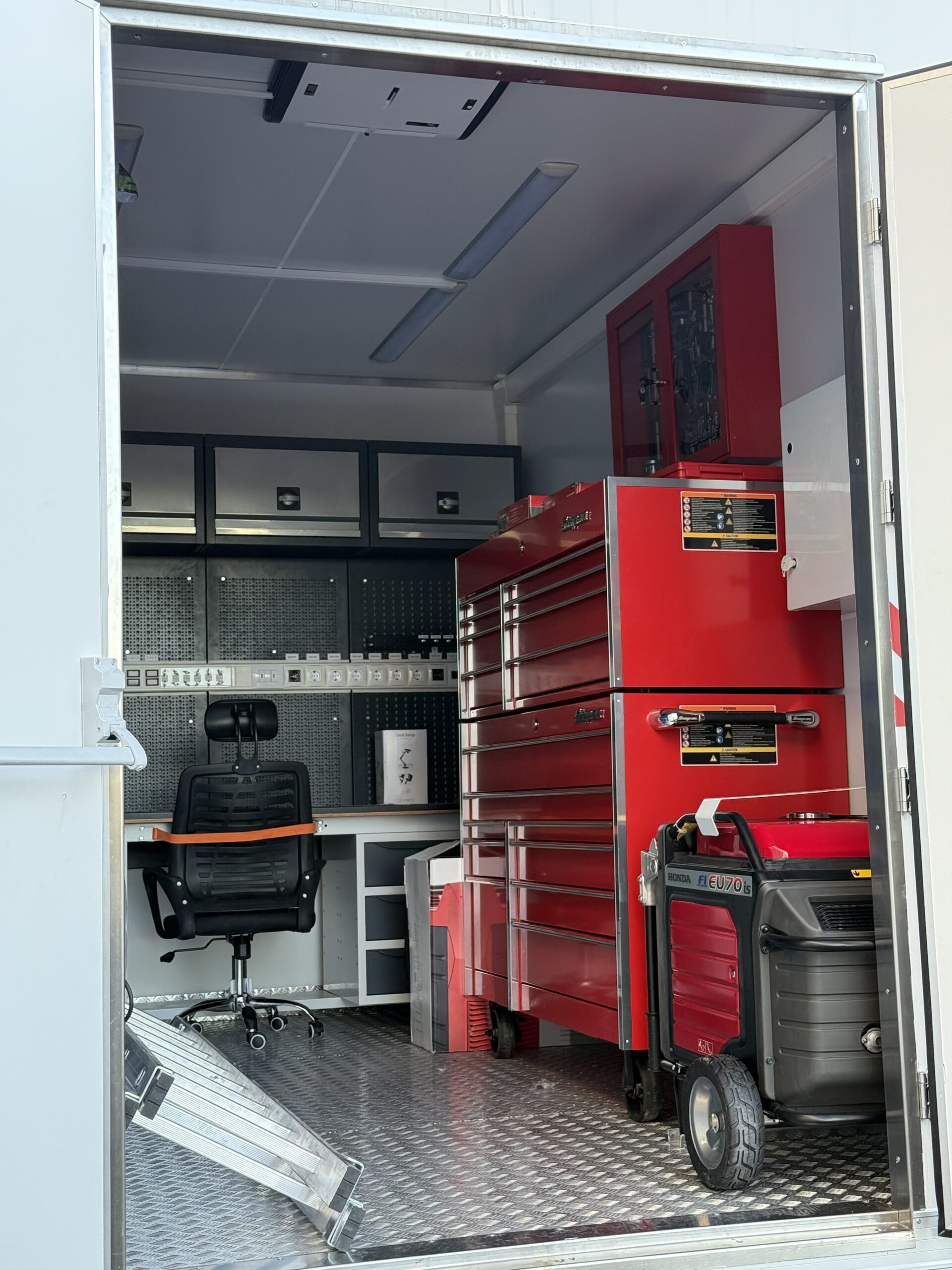

| Custom interior layout with workbenches and storage | Integrated generator system |
| Solar power integration and battery backups | Digital control panels and remote monitoring systems |
| Additional wall/roof reinforcement for specialized equipment | Custom branding, reflective markings, and color configuration |
| Rear cranes, tool compartments, or integrated compressors |
