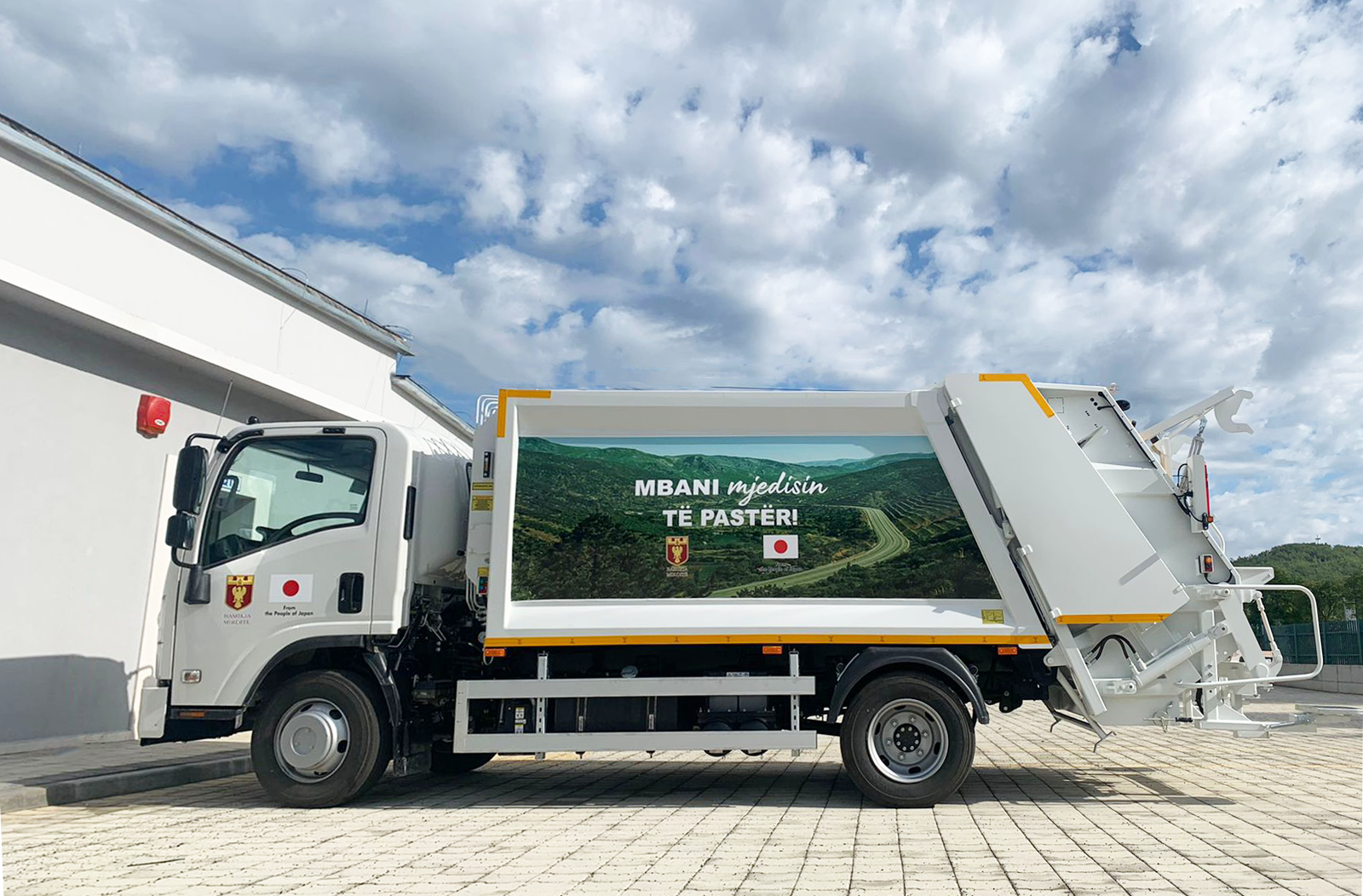

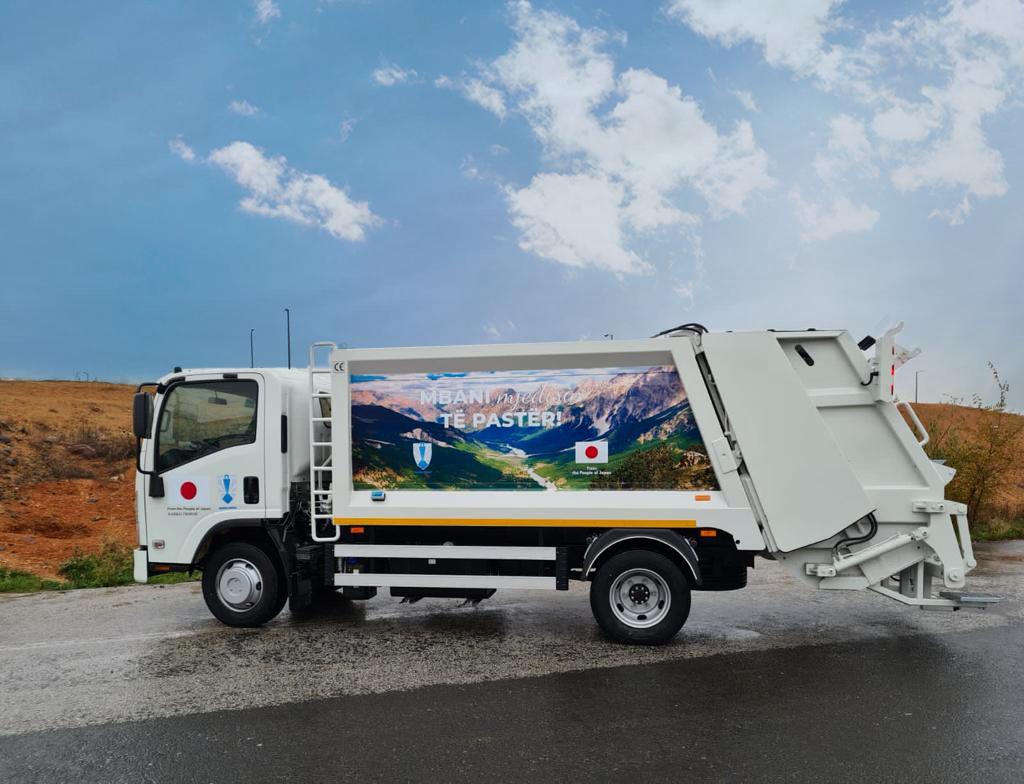

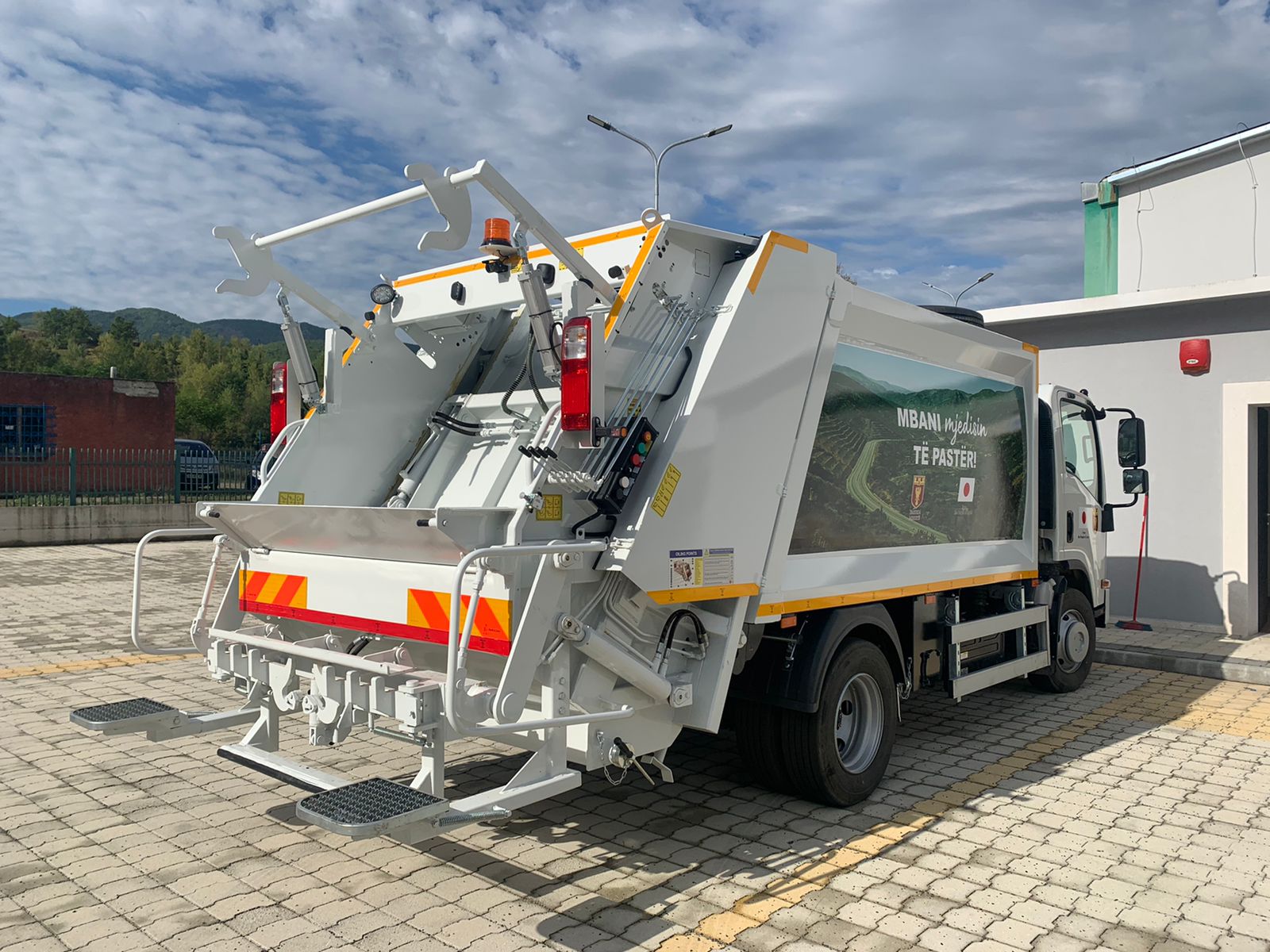

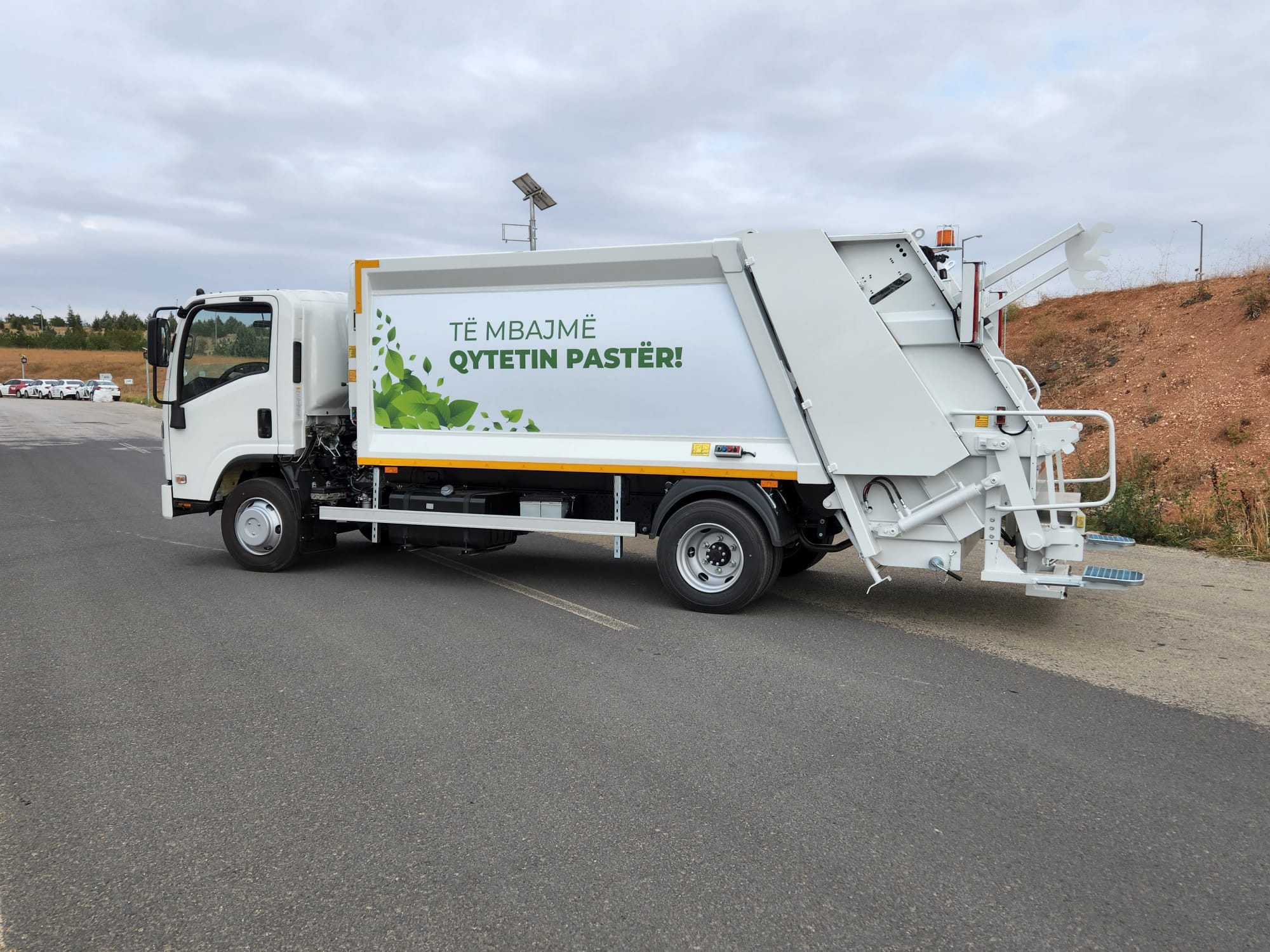

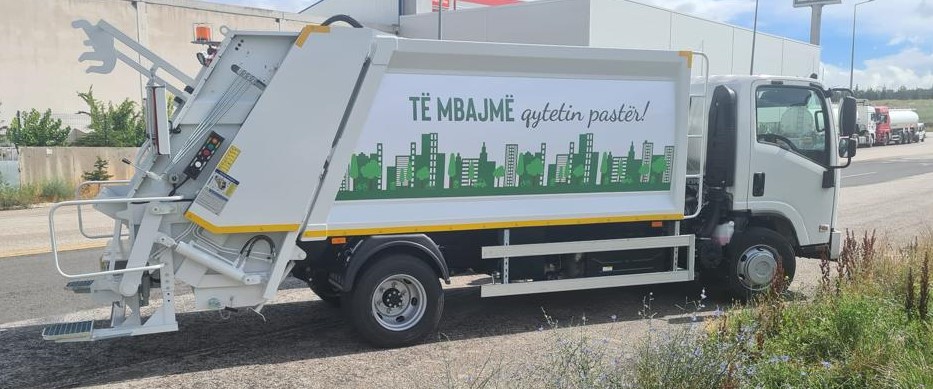

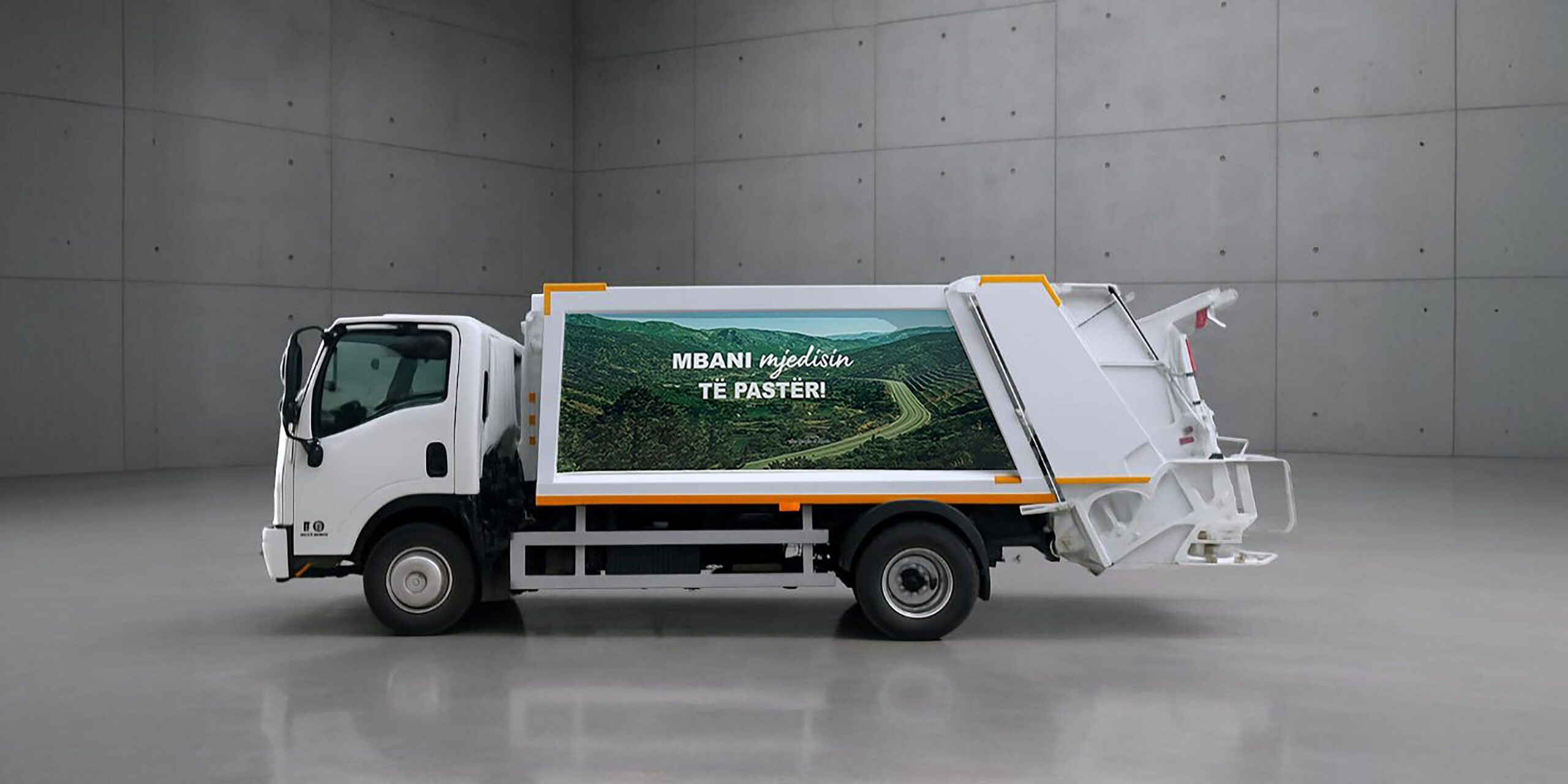

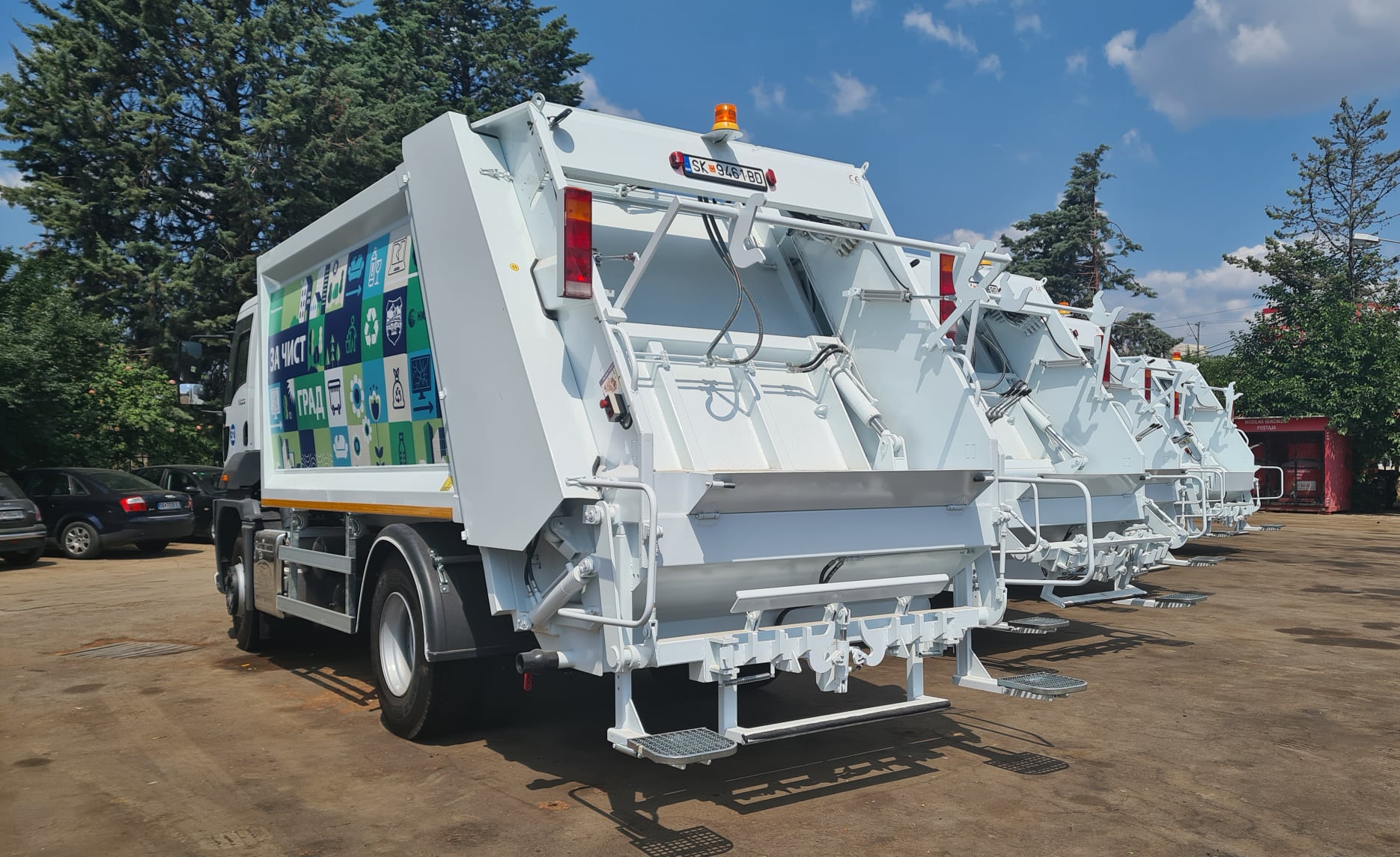

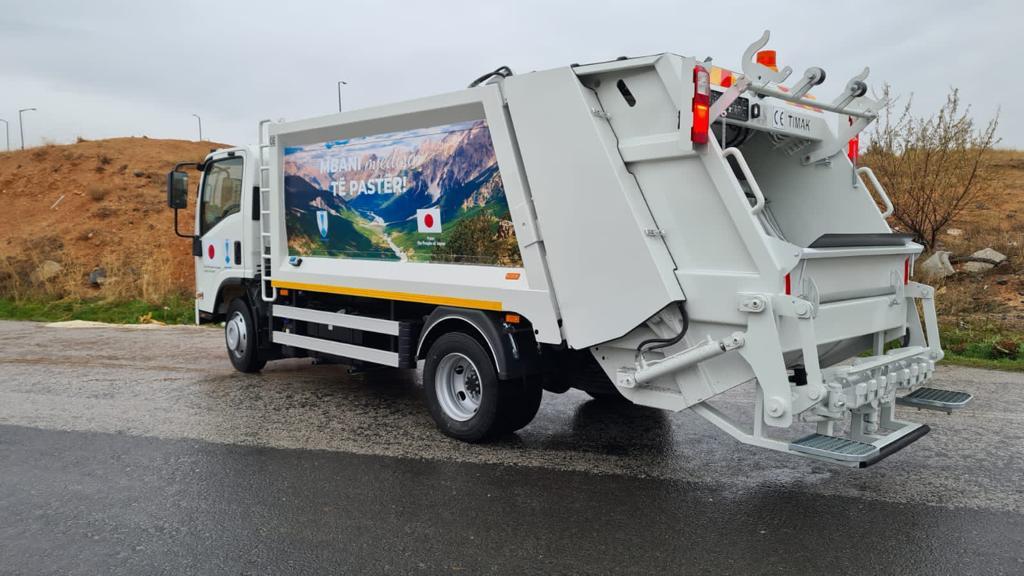

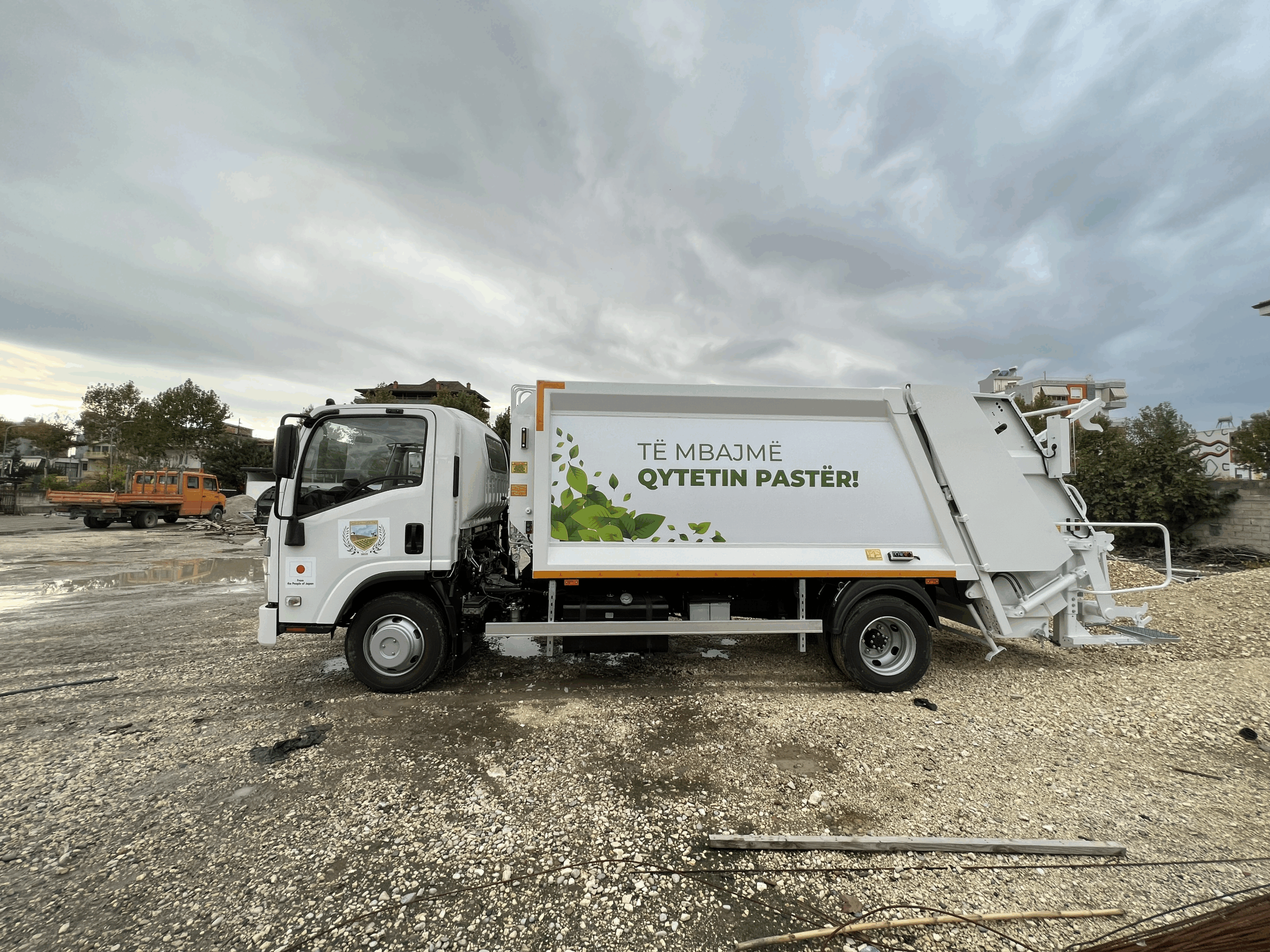

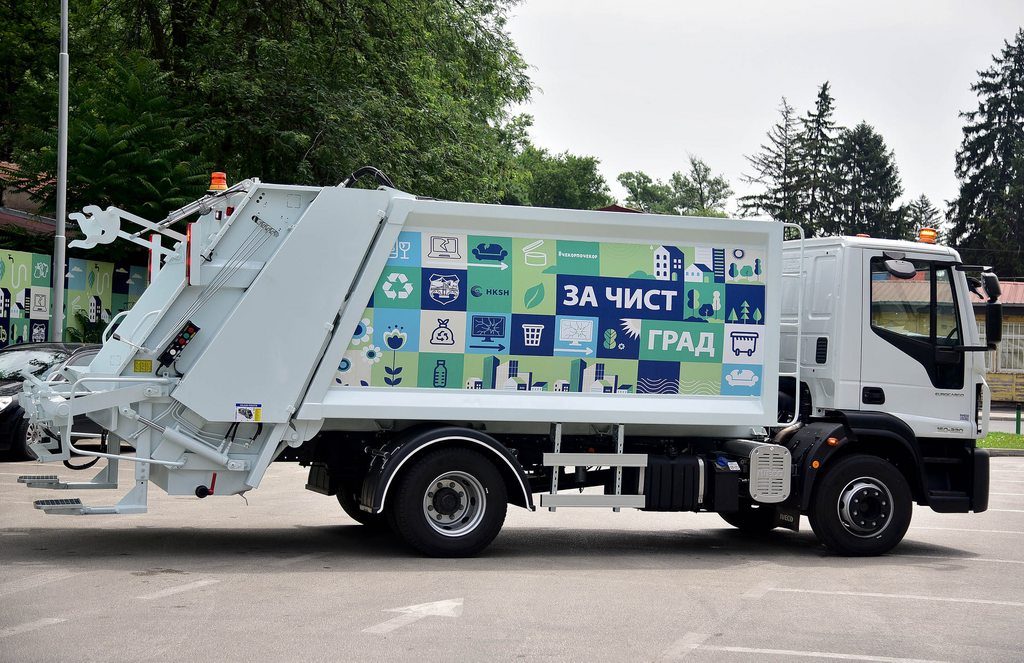

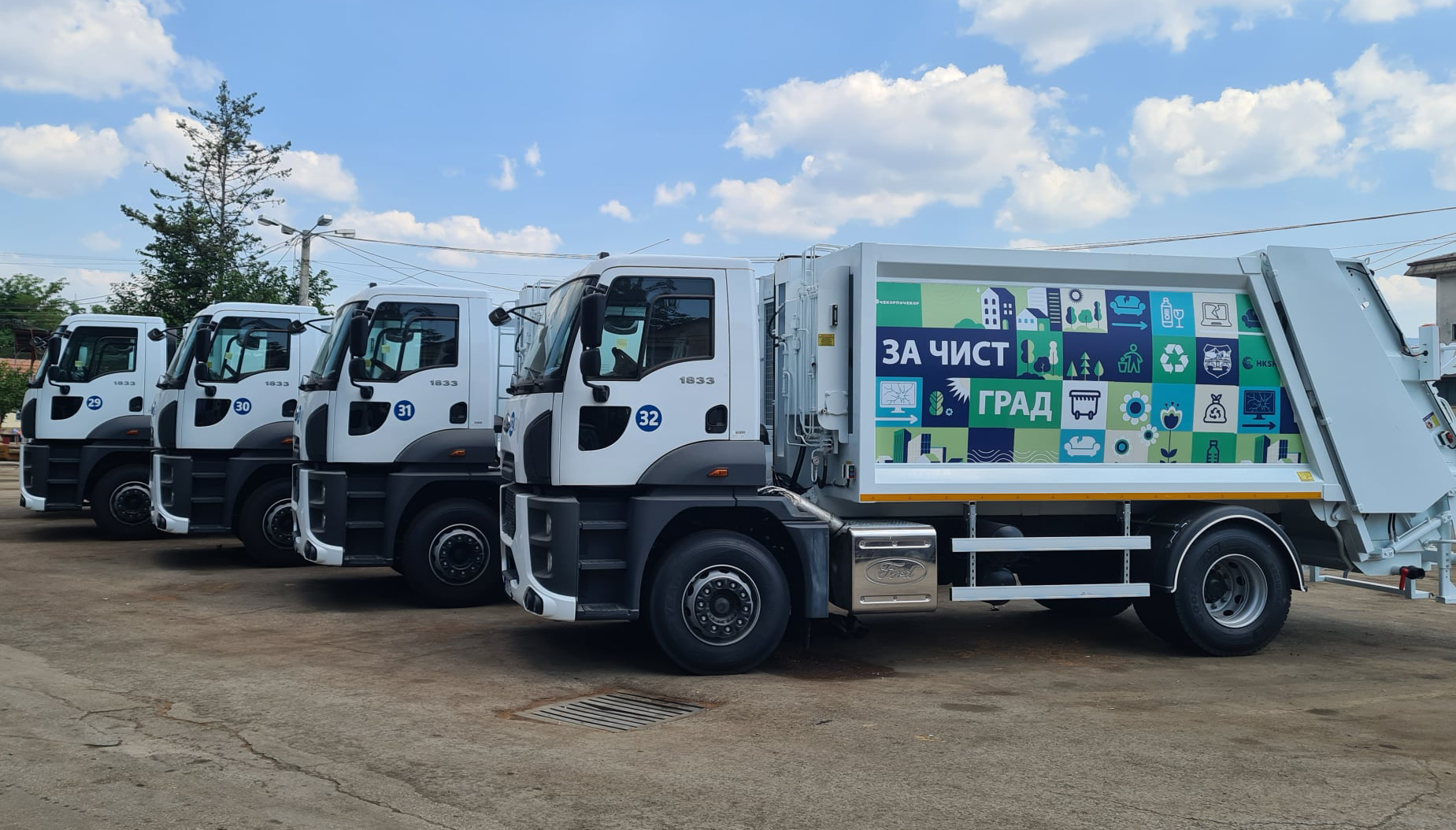

TIMAK Garbage Trucks are built for reliable, high-efficiency waste collection in urban and industrial environments. With strong compaction systems and customizable capacities, they’re ideal for municipalities and private waste operators looking to streamline daily operations.
Get in touch today to configure your ideal garbage truck.
Superstructure Body
| Capacity: 6 m³ – 28 m³ | Compression ratio: 1:3 / 1:6 | Body material: ST-52 steel |
| Floor: 4 mm abrasion-resistant steel | Side walls: 3 mm abrasion-resistant steel | Reinforced with U-profile supports on floor and walls |
| Integrated wastewater tank with drainage hose | Lifting lugs installed for maintenance and service access |
Hydraulic Equipment
| PTO-driven hydraulic system (powered via vehicle gearbox) | Cabin-controlled PTO engagement | 100 L oil reservoir with:
Suction and return filters
|
Loading & Operation
| Hopper capacity: 1 m³ / 1.5 m³ / 2 m³ | Loading type: Manual or automatic | Container lifting system:
Standard: 400–800–1100 L
|
Standard Accessories
| Bicycle barriers | Rotating warning light | Rear projector (for nighttime waste collection) |
| Rear operator step and hand grips | Worker access ladder and handrail | Rear section safety system |
| Wastewater storage tank |
Optional Specifications
| Hardox steel body construction | Remote-controlled operation system | Rear folding bumper |
| Advanced container lifting systems on request | Additional telescopic lighting | Custom branding or color options |
