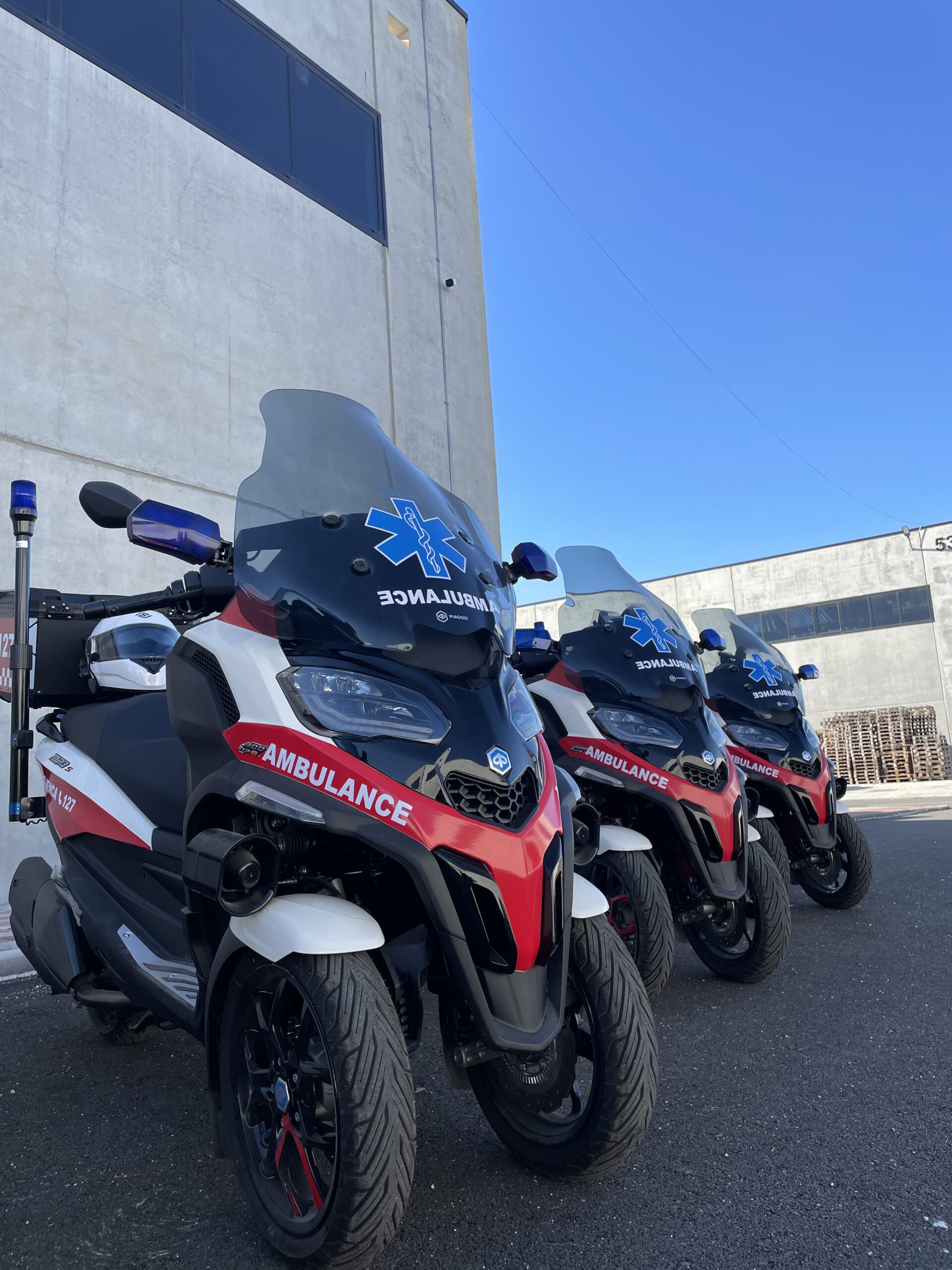

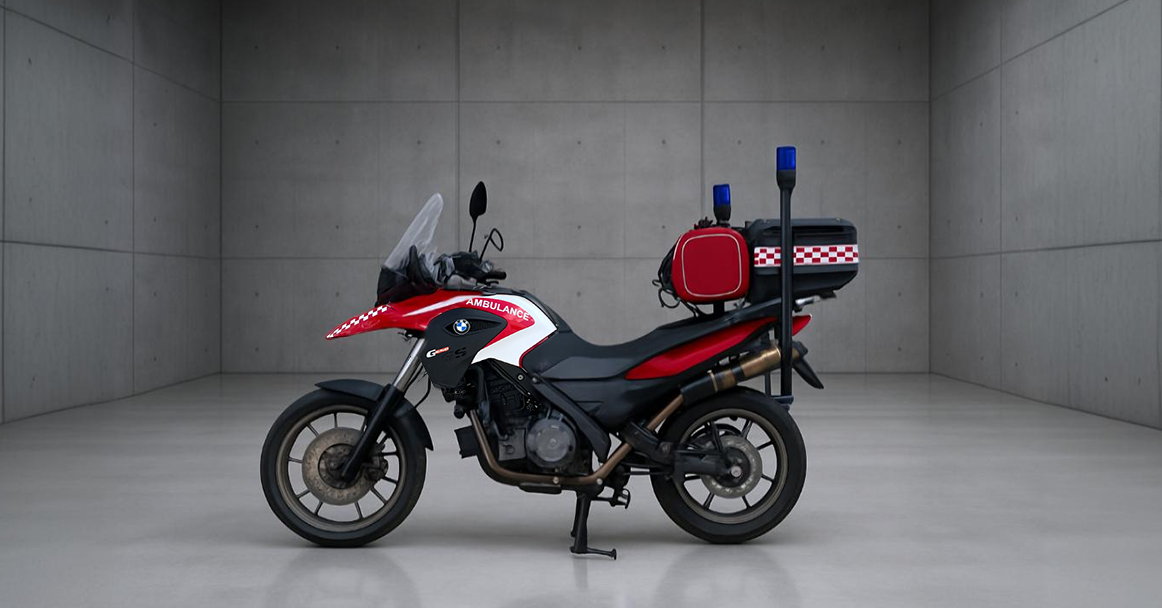

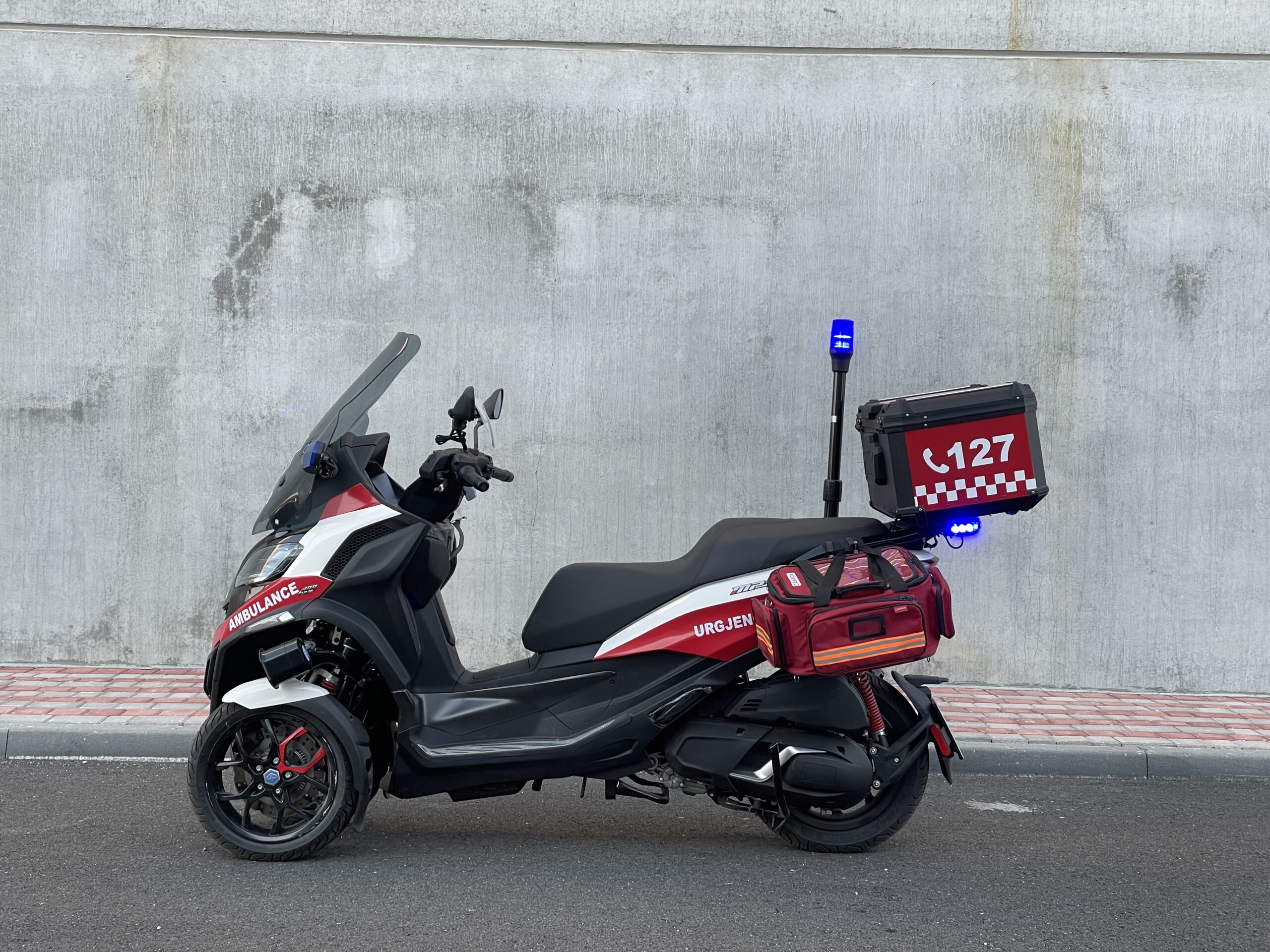

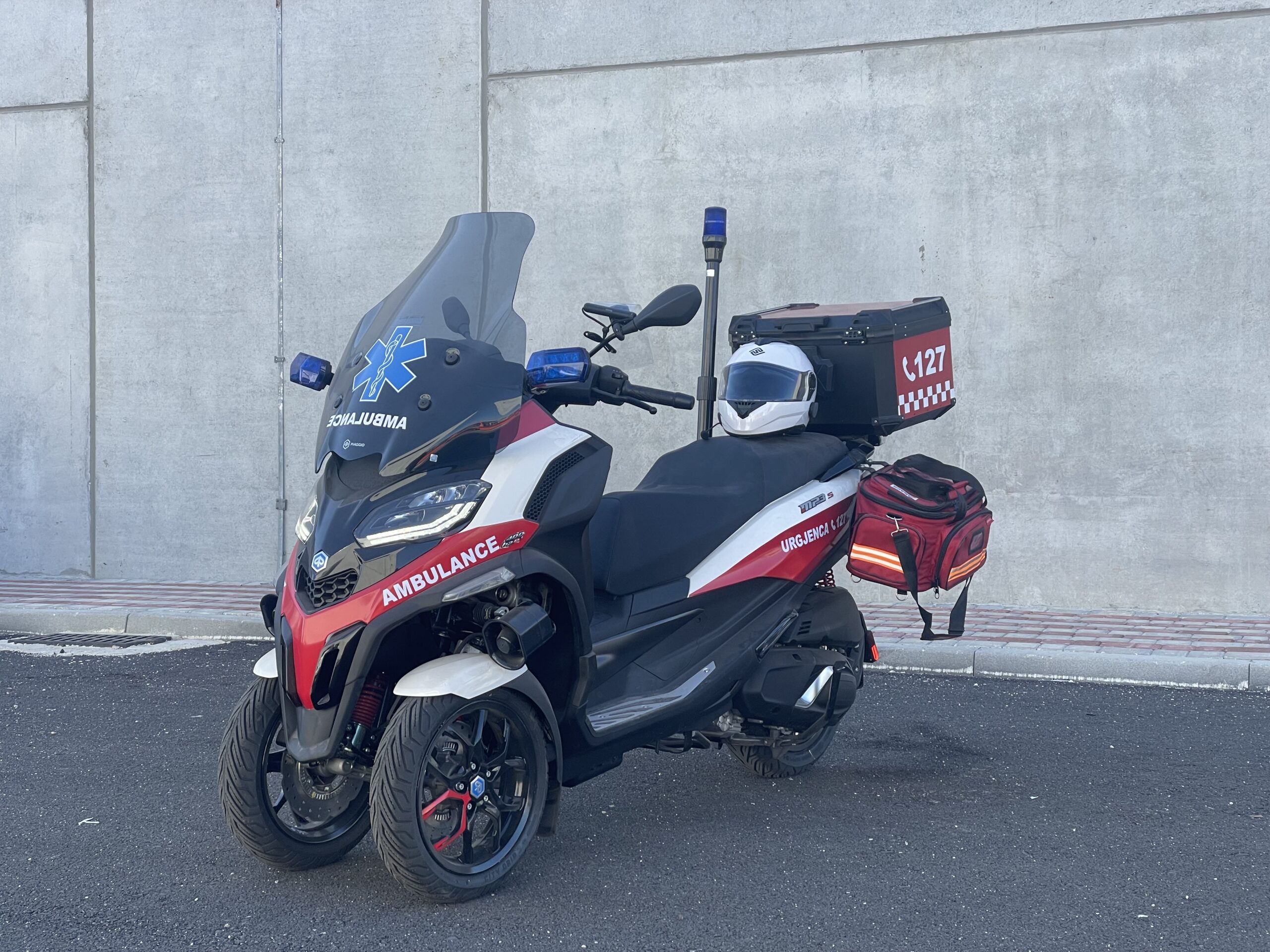

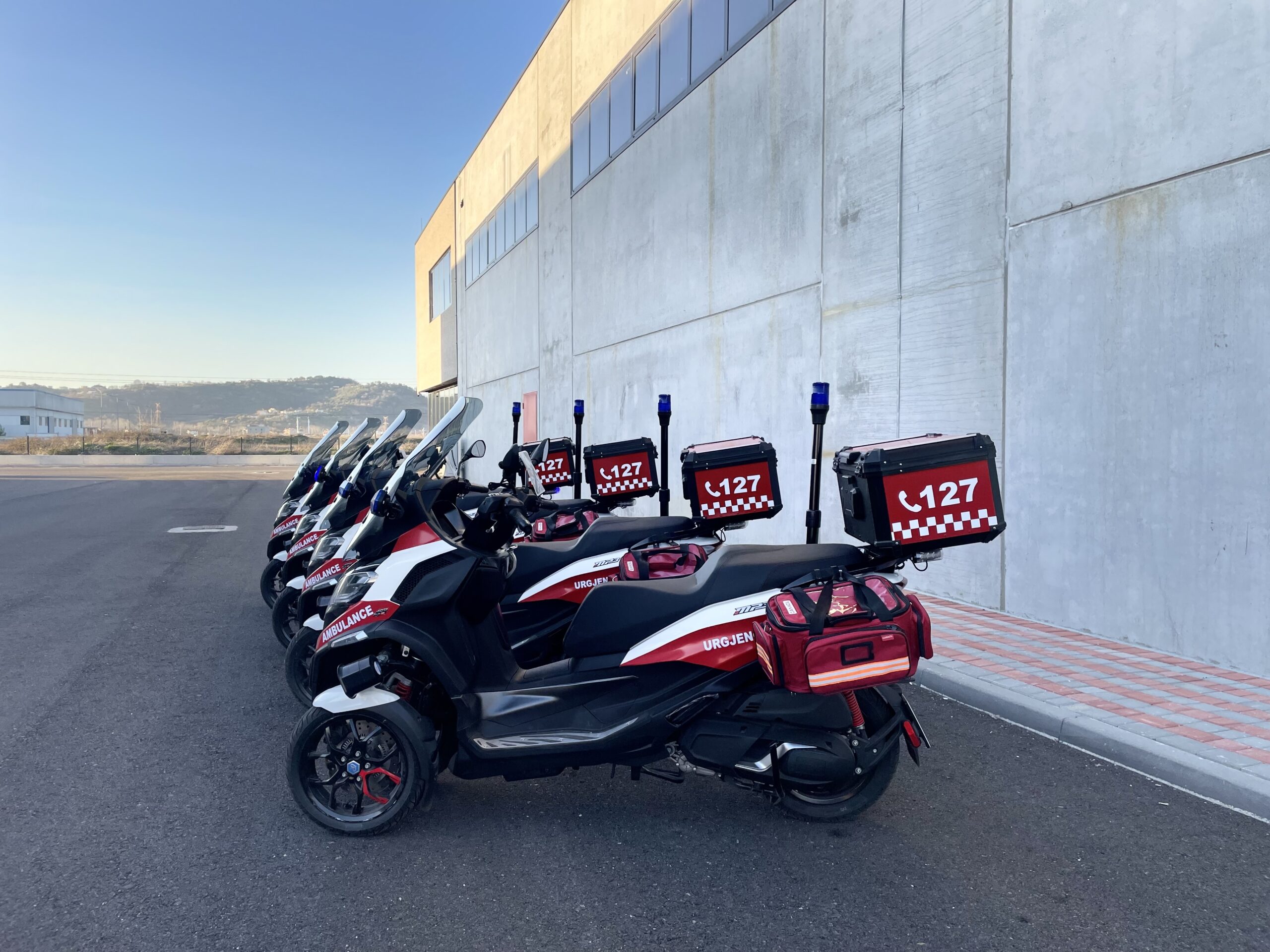

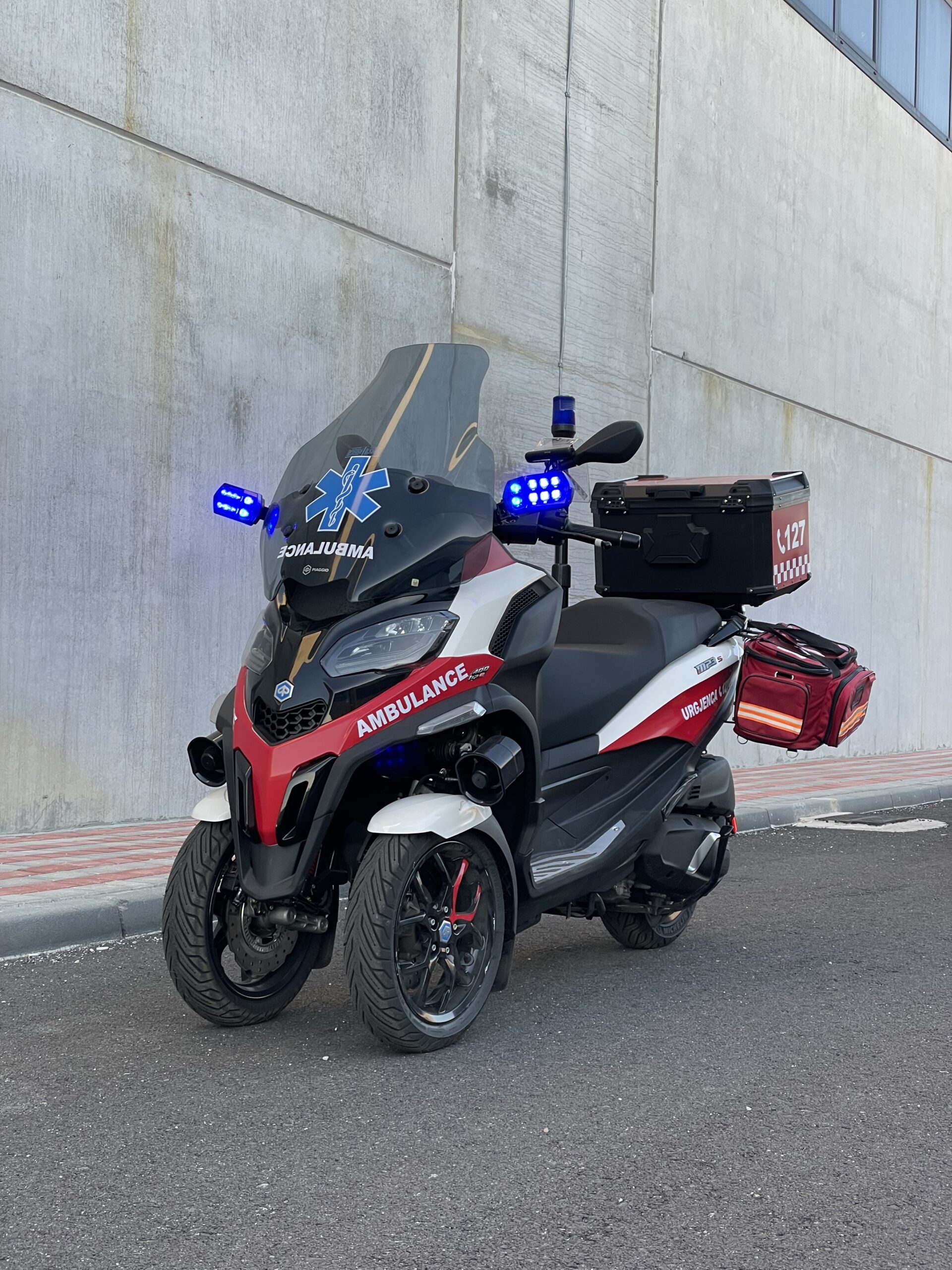

Motorcycle Ambulance for Rapid First Aid in Urban Traffic
The Motor Ambulance is TIMAK’s compact and agile solution for traffic-congested cities and hard-to-reach locations. This first responder unit delivers emergency care within minutes, making it perfect for urban rescue, festivals, and crowded events. It supports fast intervention when every second counts.
Contact us now to integrate rapid response motor ambulances into your emergency network.

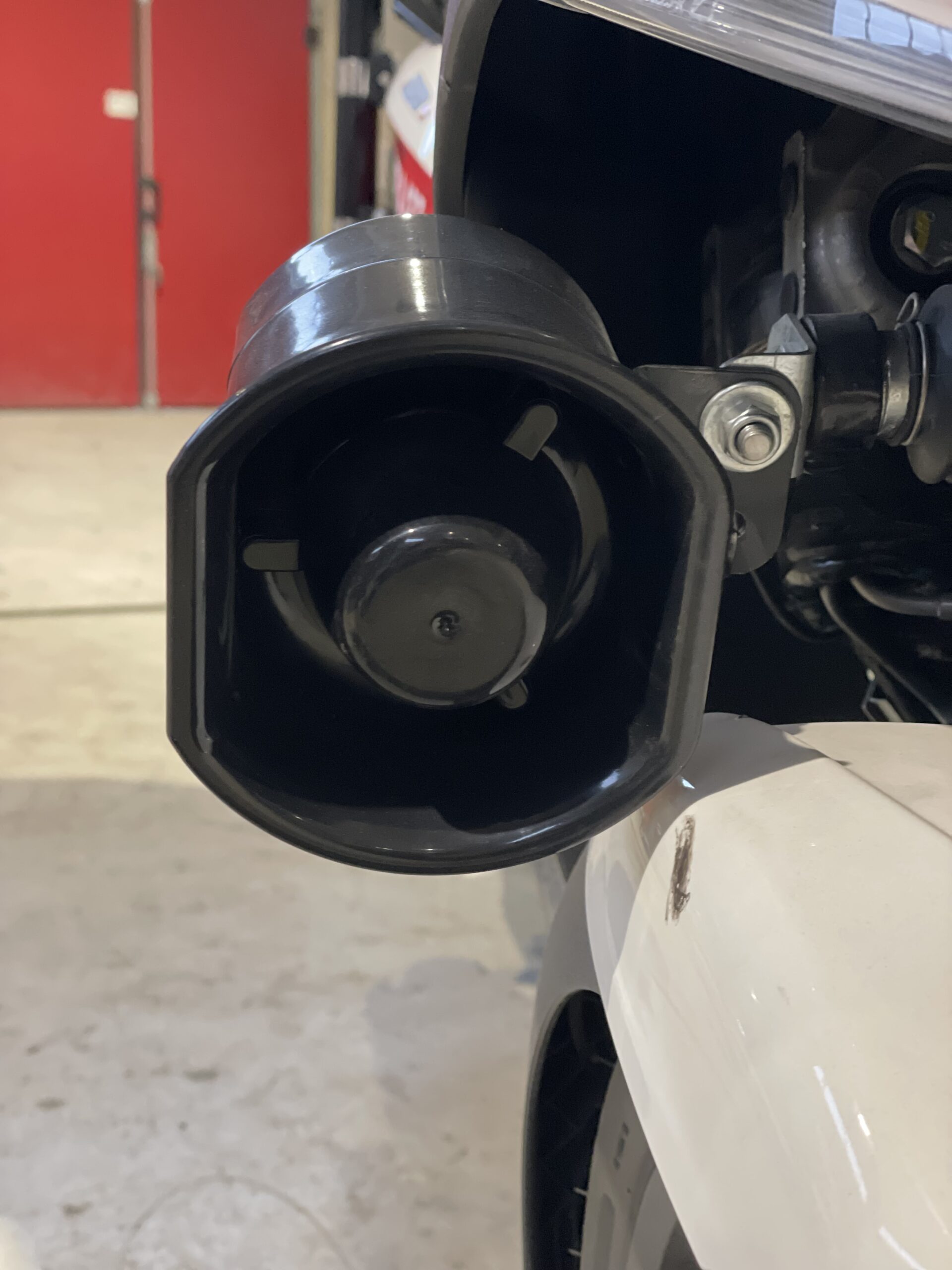

1.1 Motorcycle Siren
| Model | EXPERT-WM |
| Voltage | 12 VDC (10.5–15 VDC) |
| Siren Output Power | 80W RMS |
| Call Output Power | 40W RMS |
| Frequency Response | 300Hz–10,000Hz, max ±3dB |
| Siren Modes | Slow, Fast, Manual, Horn |
| Functions | Siren, Call, Light Warning Control (optional), Volume Control |
| Siren Frequencies – Slow | 695 Hz – 1640 Hz in 12.5 h/min interval |
| Siren Frequencies – Fast | 695 Hz – 1640 Hz in 173 h/min interval |
| Siren Frequencies – Horn | 500 Hz / 750 Hz with 125 Hz shift |
1.2 Motorcycle Speaker HP-1006
| Model | HP-1006 |
| Magnet | Neodymium (N35 or N42) |
| Impedance | 11 ohms (DC resistance max 6 ohms) |
| Speaker Power | [to be filled if available] |

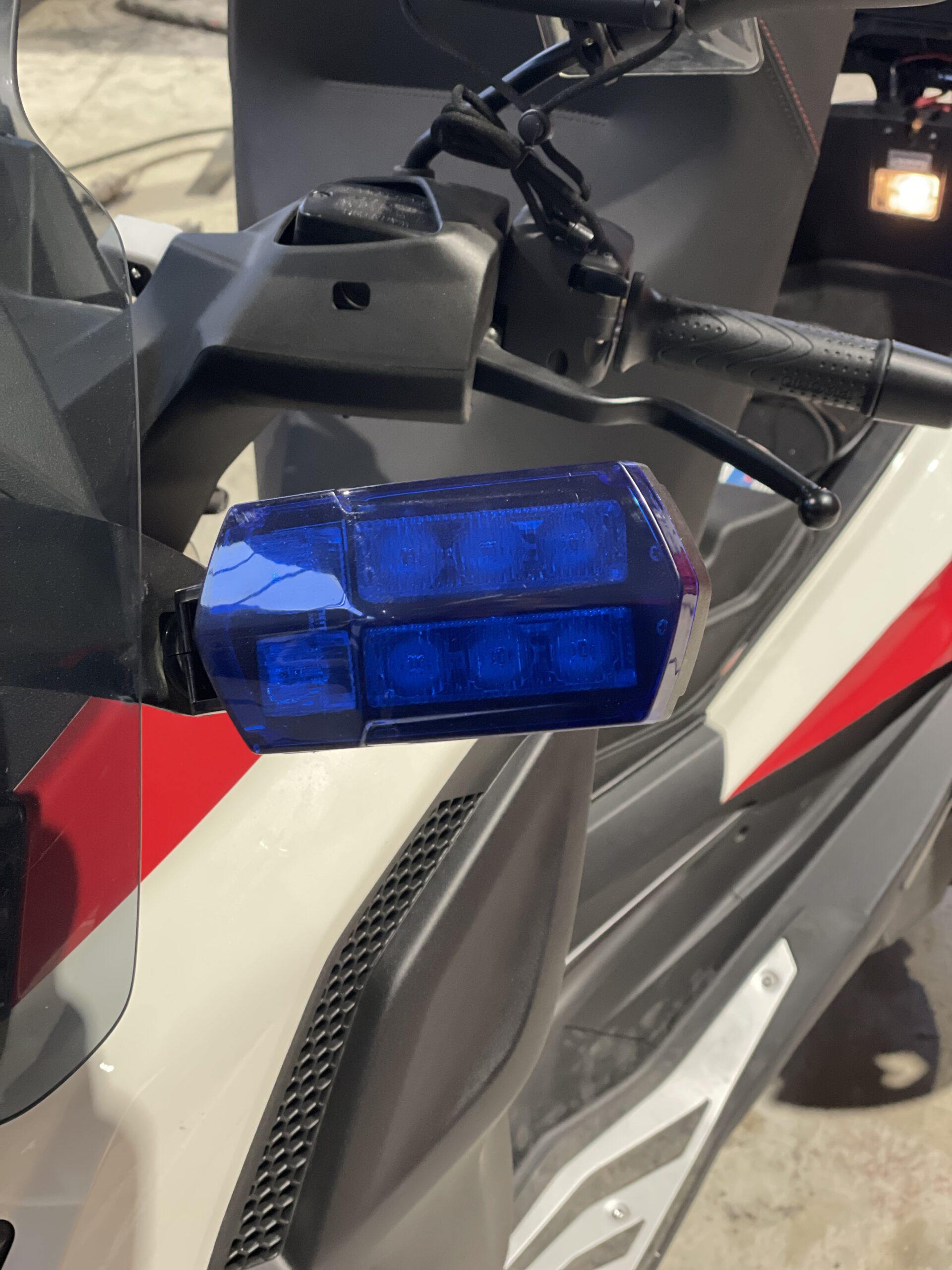

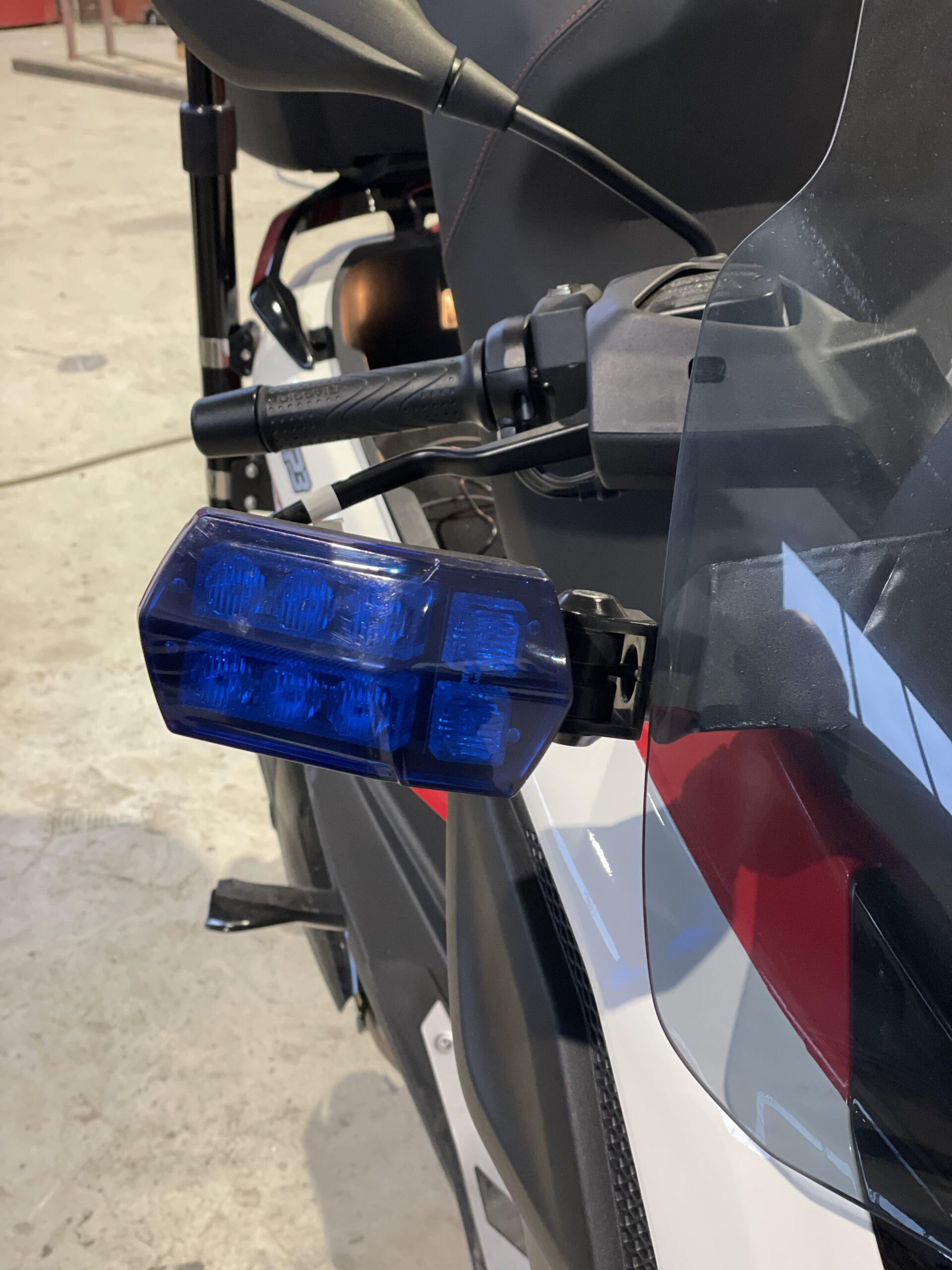

1.3 Front Warning Lights – miniBLINK (2 units)
| Model | MiniBlink |
| Voltage | 12 VDC |
| Light Source | 6 LEDs (front cross) + 2 LEDs (forward) |
| Material | Polycarbonate (UV and impact-resistant) |
| LED Colors | White, Blue, Red, Green |
| Lens Colors | Transparent, Blue, Red, Green |
1.4 Rear Warning Light – maxiBLINK
| Model | MaxiBlink |
| Voltage | 12 VDC (10.5–15 VDC) |
| Light Source | 12 LEDs |
| Material | Polycarbonate (UV and impact-resistant) |
| LED Colors | White, Blue, Red, Green |
| Lens Colors | Transparent, Blue, Red, Green |
1.5 Telescopic Warning Lights – pulse-T (2 units)
| Model | Pulse T |
| Voltage | 12 VDC (10.5–15 VDC) |
| Light Source | 3 or 6 LEDs |
| Material | Polycarbonate (UV and impact-resistant) |
| LED Colors | White, Blue, Red, Green |
| Lens Colors | Transparent, Blue, Red, Green |
Medical Equipment Standard
| Item | Description |
| Vital signs diagnostic kit | Stethoscope, thermometer, glucometer, sphygmomanometer, pulse oximeter |
| Side bag | 1 large side bag with internal smaller pouches for medical sets |
Optional Features
| Feature | Description |

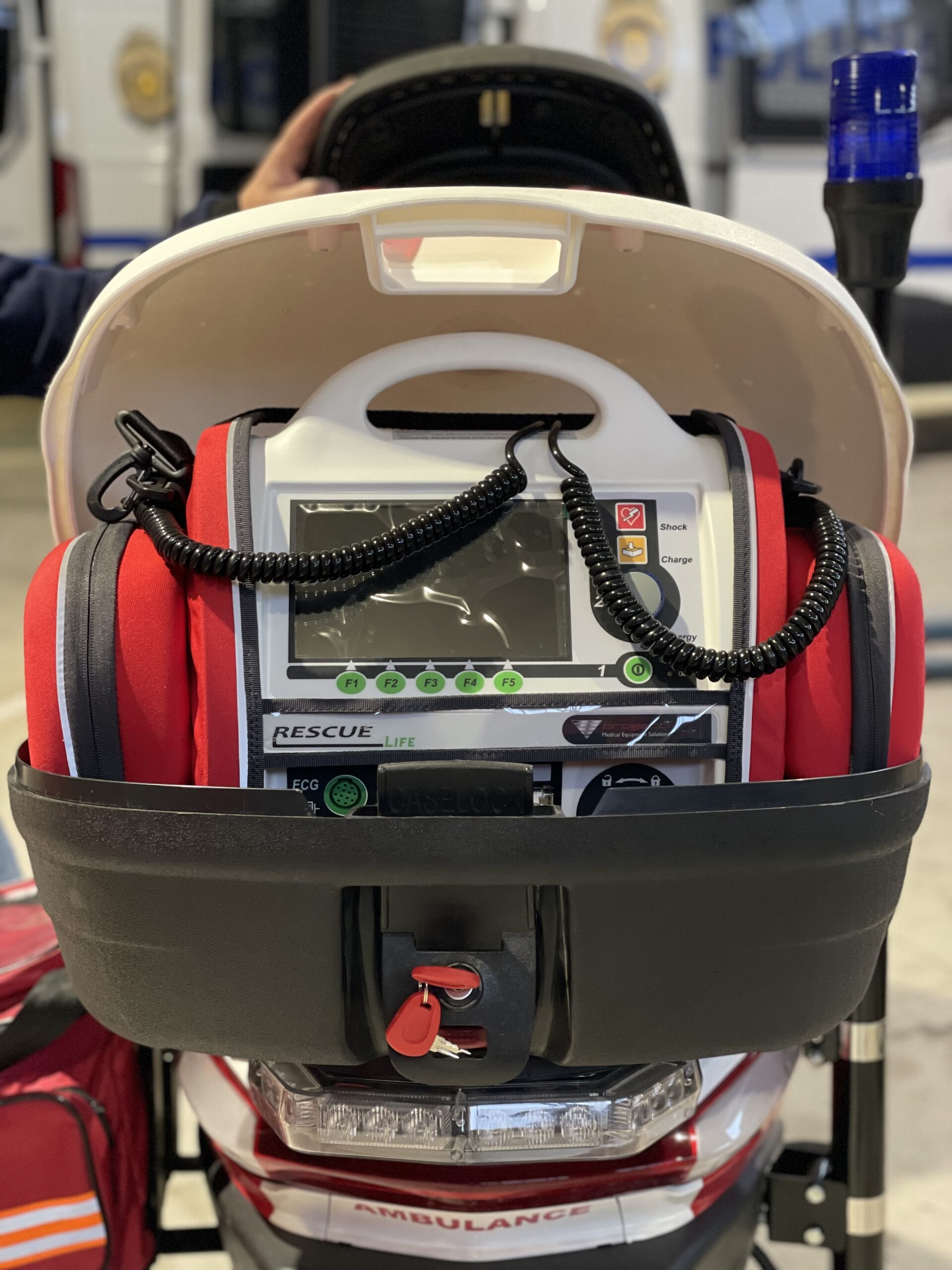

| Monitor-defibrillator | |
| Cervical immobilization collars | 3 sizes |
| Oxygen cylinder | 2L |
| Motorcycle branding | Reflective, high-visibility colors Institutional or organizational logos (front, side, rear) Custom lettering (e.g., “EMERGENCY”, “RESCUE”) in durable vinyl Reflective tape and markings for increased visibility |
