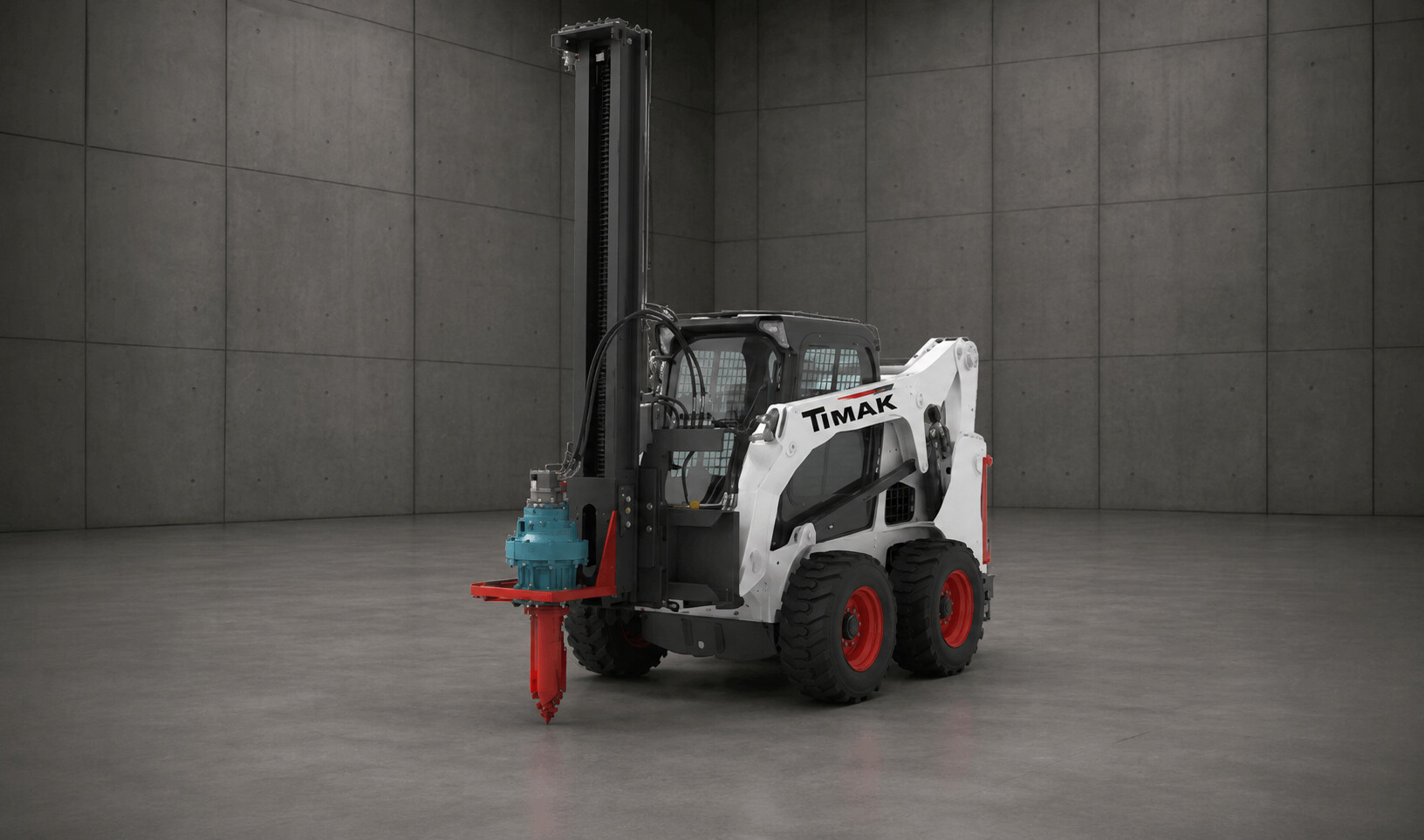

TIMAK’s Drilling Machine is a versatile and high-performance tool for geotechnical, foundation, and utility drilling. Designed for durability and accuracy, it handles various soil types and drilling depths with ease. Whether used for construction, infrastructure, or renewable energy applications, it ensures powerful output and easy operation in both urban and off-road conditions.
Choose precision and performance — contact TIMAK to build your ideal Drilling Machine solution today.
1.Chassis & Mobility
| Rubber-tracked crawler base (Vtrack system) for stable off-road operation | Grappling hooks for safe loading and unloading | Integrated hook for pile extraction |
| Operating weight: approx. 3.7 tons |
2.Powertrain
| Engine: DEUTZ air-cooled, 3-cylinder diesel engine | Power output: 34 kW (45.6 HP) @ 2800 rpm | Fuel tank: 80 L with level indicator |
3.Hydraulic System
| Hydraulic hammer:
Working weight: 490 kg |
Hydraulic oil tank: 80 L with level indicator | Hydraulic oil heat exchanger for thermal management |
| Auxiliary couplings for additional attachments | 8-level proportional command system |
4.Drilling & Pile Driving
| Maximum post dimensions: | Maximum post height: | Column inclination adjustment: |
| 160 × 120 mm | 3.9 meters | ±15° transverse and longitudinal |
Optional Features
| Automatic column leveling system | Earth auger drilling unit | Rock drilling attachment |
| Steel track system for enhanced durability | Kubota liquid-cooled diesel engine (4-cylinder, 35.9 kW / 48.1 HP @ 2800 rpm) | Hydraulic front blade for surface leveling or trench cutting |
